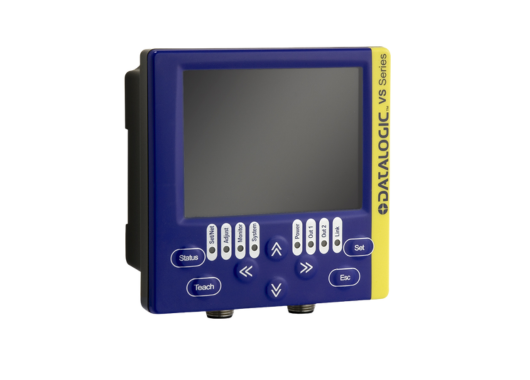

Photoelectric Vision sensors VSM Series

Datasensing VSM Series

The VSM Series provides a sophisticated monitor interface built specifically for the DATAVS2 family of vision sensors, engineered for real-time visualisation, operator adjustment of inspections, and industrial deployment. With support to display processed images, change inspection formulas on-the-fly, and network multiple vision sensors, the series offers enhanced control, diagnostics, and operator usability.

Design & Functionality

• The VSM monitor comes in a compact block housing measuring approximately 96 × 96 × 40 mm, designed for panel-mount or machine-side installation.
• Features include a colour 3.5″ LCD display and keypad interface allowing operators to view live inspection images, statistics, and change inspection formulas without a PC.
• The Ethernet interface allows connection into a LAN network, enabling one monitor to manage multiple vision sensors and stream inspection results to the production network.
• Memory capacity supports storage of up to 20 inspection formulas, enabling quick change-over between different production items or inspection setups.
• The monitor supports the full range of DATAVS2 sensor functions including object recognition, identification, barcode/Datamatrix/OCV and TURBO-mode acceleration, enabling seamless operator access to advanced vision functions.

Total Crossed Beams

(In this context, this phrase refers to the monitor ensuring full visual coverage and control of the connected vision sensor’s inspection field rather than literal crossed beams.)

• The VSM ensures that operators have a complete view of the inspection process, including live imagery, tool results and statistics, enabling fast diagnosis and fewer missed faults.
• With the ability to switch inspection formulas, adjust parameters on-the-fly and network multiple sensors, it delivers enhanced coverage of vision-inspection processes across the machine line.

Beam Pitch Options

(Interpreted here as variant options of memory/inputs rather than literal beam pitch.)

• Example: Standard interface version with 3.5″ LCD display and up to 20 inspections stored.
• Example: Network compatible version with LAN/Ethernet capable of managing multiple sensors.
• These variant options allow selection of a VSM monitor tailored to your operational need — whether for a single sensor interface or a networked monitoring station — offering design flexibility.

Intrinsic Synchronism

• The VSM monitor is fully integrated into the vision system network, synchronising with the connected DATAVS2 sensors via Ethernet, providing live image feedback, parameter adjustment, status and image logging.
• This integration means that no additional PC or controller is required at the operator station — simplifying installation and maintenance, and enabling faster line changes.

Operational Advantages

• Operator-friendly interface: The VSM brings advanced vision-sensor functionality into a machine-side monitor with live imagery, status LEDs, keypad and Ethernet network — reducing reliance on PC-based software.
• Enhanced change-over and diagnostics: With memory for multiple inspection formulas, live image view and tool results, the monitor empowers fast product change-over, root-cause analysis and fewer downtime events.
• Network integration: Ethernet connectivity allows one VSM to monitor multiple sensors or integrate into the plant SCADA/PLC network for centralised control and data logging.
• Machine-side robustness: Panel-mountable housing, industrial connectors, Ethernet and robust construction make the monitor suitable for factory-floor deployment.
• Applications: Ideal for manufacturing lines requiring visual inspection via smart sensors — packaging lines, electronics assembly, robotics modules, conveyor systems — where operator interaction, visual feedback, and inspection control are required.
