Detection Measurement area sensors DS1 Series

Datasensing DS1 Series

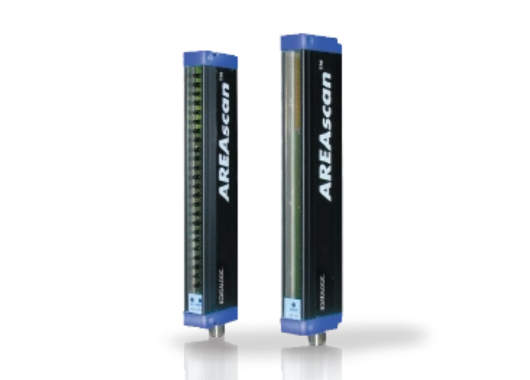

The DS1 Series area sensors use a crossed-beam light grid architecture to monitor an entire detection plane rather than a single point, delivering reliable object detection and measurement across a defined height.

Design & Functionality

With controlled heights selectable from approximately 100 mm, 150 mm or 300 mm, the DS1 Series adapts to a variety of installation heights. The slim profile suits integration into constrained spaces, and the dense beam grid ensures high detection accuracy. Typical minimum resolution is 4 mm in high-resolution models. Response times are as fast as ~1 ms in suitable configurations.

Multi-Beam Architecture & Measurement Capability

• Light-grid matrix provides both presence detection and dimensional measurement of objects passing through the sensing plane.
• Minimum detectable object sizes down to ~4 mm with high-resolution models, ~7 mm with standard resolution.
• Sensing distances up to ~4 m depending on model variant and installation conditions.
• Analog output (0-10 V) corresponds to the number of beams interrupted, enabling measurement feedback in addition to simple switching.
• Output options include PNP switching and analog combined output for more advanced integration.

Operational Advantages

• Rapid detection and measurement even on quickly moving objects or irregular shapes.
• High immunity to ambient light, and robust design for industrial environments.
• Simplified configuration with trimmer adjustment where available.
• Suitable for detecting thin, small or irregular items due to dense beam spacing and high resolution.

Applications

The DS1 Series is ideal for:

• Conveyor and sorting systems detecting items of varying sizes and shapes.
• Packaging lines where small or flat objects must be reliably detected or measured.
• Automated manufacturing cells requiring high-speed object detection and dimension verification.
• Any automation scenario where a narrow but tall detection field is needed in a compact footprint.
