The DS4 Base Series delivers robust detection and measurement across industrial areas using a dense crossed beam architecture. Unlike simple point sensors, these area sensors continuously monitor an entire detection plane—ensuring reliable recognition of objects regardless of their orientation, position or transparency.

Design & Functionality

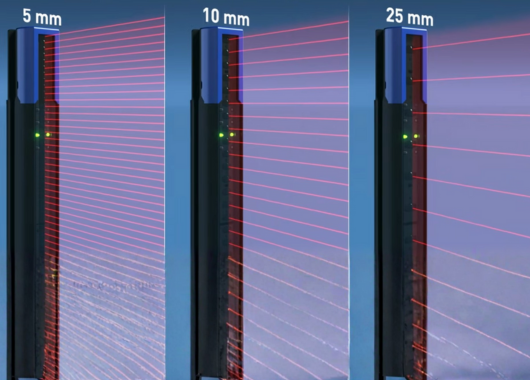

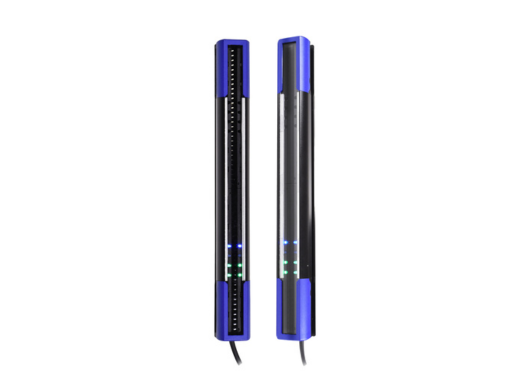

The DS4 Base series is engineered for flexibility and ease of installation in industrial automation systems. Detection heights begin at approximately 300 mm and extend up to 1500 mm (and higher in extended models). Beam pitches are selectable at 5 mm, 10 mm or 25 mm, allowing the user to tailor resolution and coverage according to application needs. Sensing distances reach up to 13 m in favorable conditions.
(As per latest product update)

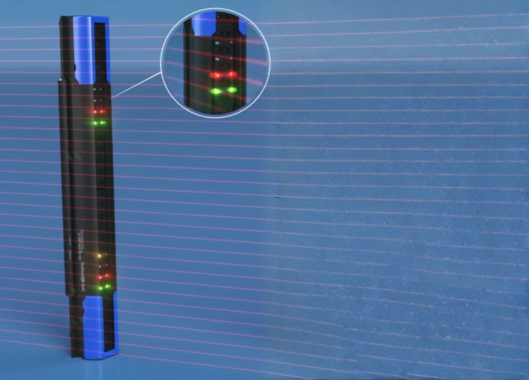

Crossed-Beam Architecture & Measurement

• Utilises a crossed beam matrix to enable both presence detection and dimensional measurement.
• Fine beam spacing models (5 mm) enable detection of very small objects or thin items down to ~3.5 mm in certain variants.

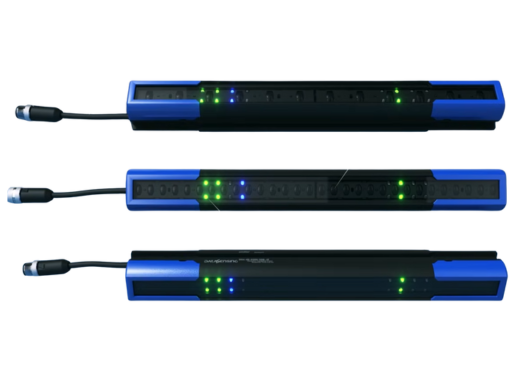

• Extended aperture size models (height up to 1500 mm or more) support large-scale area monitoring or measurement across wide conveyors.
• Versions support both detection and measurement tasks thanks to interpolation algorithms embedded in the sensor family.

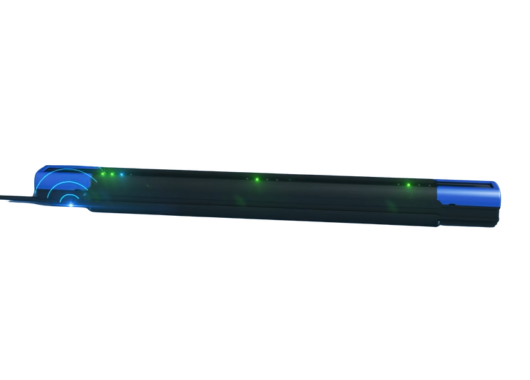

• Options include IO-Link configuration and wireless input of parameters for advanced diagnostics and management.

Operational Advantages

• Large detection height combined with fine beam spacing permits monitoring of bulky loads as well as small items on the same system.
• Excellent transparency detection and high immunity to ambient light interference.
• Fast response capability and wide sensing distances make the series suitable for high-speed conveyors and intralogistics operations.
• Modular design and configuration options simplify integration into automation lines.

Applications

The DS4 Base Series is suited for:

• Conveyor & material-handling systems in intralogistics, warehousing or freight distribution.
• Packaging lines and end-of-line automation where size and presence must be checked.
• Measuring and verifying objects in manufacturing processes (e.g., glass sheets, pallets, crates) thanks to extended height models.
• Any industrial automation cell where a reliable measurement or detection field is needed over a wide height or width.

With its combination of height flexibility, beam pitch options, and industrial robustness, the DS4 Base Series offers a versatile solution for medium to large scale area sensing and measurement needs.
