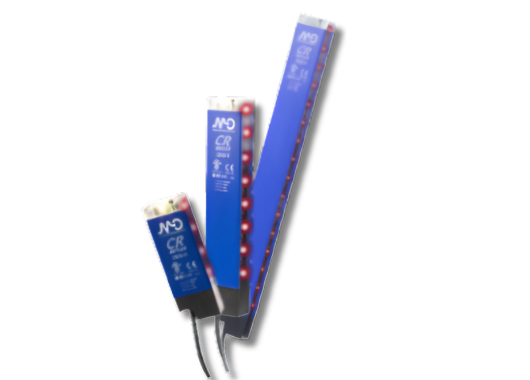

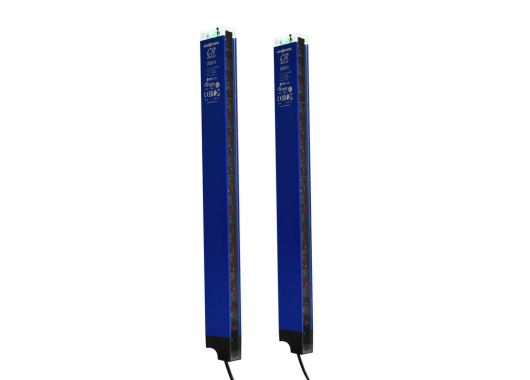

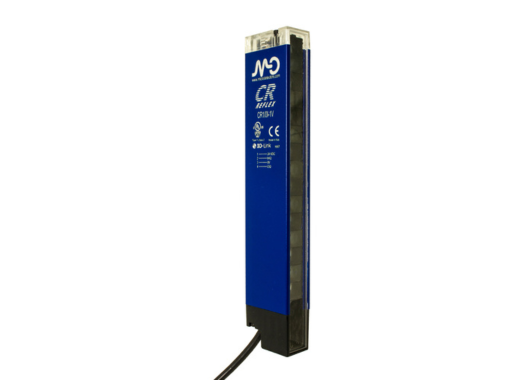

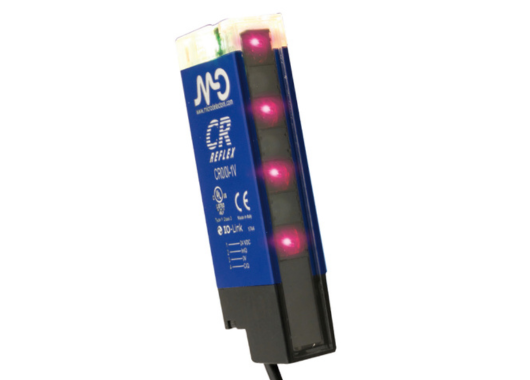

Detection area sensors CR Series

Datasensing CR Series

The Datasensing CR Series delivers robust, wide-area object detection using a polarized retro-reflective architecture. Unlike single-point sensors, these area sensors monitor an entire vertical detection field, ensuring consistent, stable detection of objects regardless of their size, transparency, or angle.

Design & Functionality

The CR Series uses a single active unit paired with a reflector, simplifying installation and reducing wiring compared to traditional emitter-receiver pairs. The sensors are available in three controlled heights—69 mm, 149 mm, and 309 mm—allowing flexible integration into a variety of industrial applications.

Polarized Retro-Reflective Architecture

• Provides secure detection even with shiny or transparent materials
• Ensures minimal influence from ambient lighting and reflective surfaces
• Uses a 10 mm beam pitch for dense, uniform detection coverage
• Ideal for detecting objects of different shapes or partially positioned items

Operational Advantages

Simplified Installation

Since only one sensor and a reflector are required, alignment and wiring are significantly easier compared to traditional cross-beam systems.

Extended Sensing Distance

Models support operating ranges of up to 4.5 m, enabling detection over conveyor widths or storage lanes.

High Reliability

• Excellent transparency detection
• Strong resistance to electrical and optical interference
• Stable performance in high-speed or variable-position applications

Advanced Communication (IO-Link Models Available)

Allows remote configuration, diagnostics, and monitoring for Industry 4.0 integration.

Applications

The CR Series is ideal for:

• Conveyor and sorting systems
• Packaging machines and material handling
• Detection of transparent films, trays, bottles, and irregular objects
• Intralogistics and automated warehousing
• Applications requiring fast, wide-area detection with minimal mounting complexity

With its compact format and powerful retro-reflective functionality, the CR Series is a versatile detection solution for modern automation environments.
