Detection area sensors NX Series

Datasensing NX Series

The NX Series from Datasensing provides reliable area monitoring through a crossed-beam optical architecture in a slim, housing-free format. Instead of sensing at a single point, these area sensors monitor the entire detection plane, ensuring consistent detection of objects regardless of shape, transparency or position.

Design & Functionality

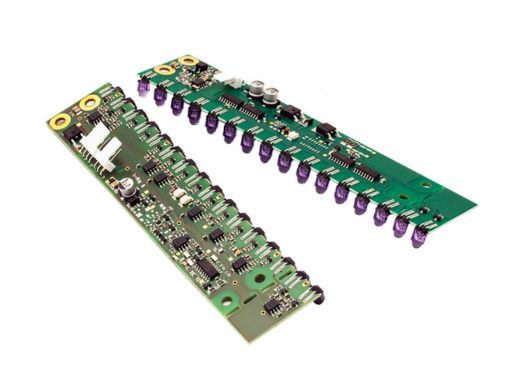

The NX series features a module-style emitter + receiver kit (or single unit for some variants) with a controlled detection height (for example ~130 mm) and beam pitch of 10 mm. Designed to fit into compact installations, the housing-free format allows integration in vending machines, automation cells, conveyors or packaging systems with minimal footprint.

Crossed-Beam Architecture & Medium Resolution

• Crossed-beam layout with 14 or 16 optics for full coverage of the detection zone.
• 10 mm beam spacing enables detection of small objects (approx. Ø 5 mm typical).
• Typical sensing distance is 0.5–2 m, depending on model.
• Rapid switching (e.g., ~130 Hz or response times in µs/ms range) suitable for dynamic applications.
• Robust LED indicators for power, signal and output status; built-in protections for electrical stability.

Operational Advantages

• Simplified installation thanks to modular emitter + receiver kit design.
• Excellent performance on irregular or transparent objects, thanks to dense beam matrix and polarization/optical layout.
• High ambient light immunity and low leakage/voltage drop ensure stable operation.
• Compact profile allows integration into tight spaces within packaging, sorting or automatic dispensing systems.

Applications

The NX Series is suited for use in:

• Automatic vending machines and compact equipment
• Conveyor and sorting lines with limited space
• Packaging machinery detecting small or irregular objects
• General manufacturing or intralogistics where precision area detection is needed

By offering medium-resolution area scanning in a slim footprint, the NX Series enables detection performance in installations where typical photo-electric point sensors may struggle.
