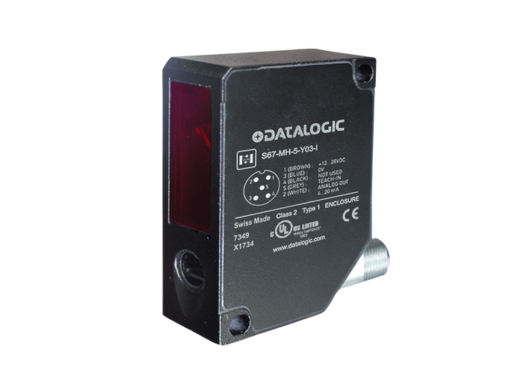

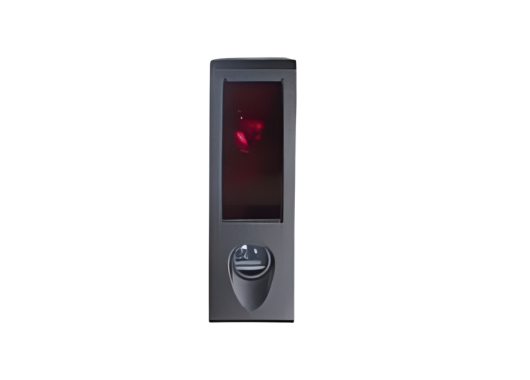

Photoelectric Distance measurement sensors S67-Y Series

Datasensing S67-Y Series

The S67-Y Series offers a premium family of laser distance sensors engineered for micrometric precision, compact industrial installation and robust performance across manufacturing environments. With a die-cast zinc metal housing, Class 2 red laser emission, and analog output options, this series enables highly accurate distance measurement, repeatable detection, and industrial durability.

Design & Functionality

• The sensor is built within a metal die-cast zinc housing rated IP67, providing mechanical durability and industrial-grade protection against dust and water.
• Measuring range variants include 50…300 mm (Y03) or 100…600 mm (Y13) on a 90% white target, enabling selection of the span most suited to your application.
• Resolution is down to 0.01…0.33 mm in the shorter range model (Y03) and 0.015…0.67 mm in the longer span model (Y13), offering sub-millimetre detection precision.
• Linearity error is as low as ±0.03 mm at 50 mm in the Y03 variant, ensuring measurement accuracy for critical applications.
• Output options include analog voltage (0-10 V) or analog current (4-20 mA), plus a soiling/alarm indicator and teach-in capability (via push-button), enabling straightforward setup and maintenance.
• Response time in short-range models is less than 0.9 ms, supporting high-speed automation and dynamic processes.

Total Crossed Beams

(In this laser measurement sensor context, this term is taken as providing a stable, consistent detection/measurement path rather than literal crossed optical beams.)

• The S67-Y Series ensures a high-stability measurement zone, even with varying target colours, surfaces or reflectivity — thanks to its high-resolution laser spot and sensitive receiver array.
• This leads to very repeatable distance measurement, crucial in positioning, part-placement, machine tool setup and quality control applications.

Beam Pitch Options

(Here interpreted as selectable measuring span/variants rather than literal optical pitch.)

• Short-span variant (Y03): ~50 … 300 mm, resolution ~0.01-0.33 mm.
• Long-span variant (Y13): ~100 … 600 mm, resolution ~0.015-0.67 mm.
• These options allow the sensor to be selected to match target distance, size and installation constraints—providing deployment flexibility.

Intrinsic Synchronism

• The electronics and optics are integrated in a compact unit — no external synchronisation wiring is required — which simplifies installation and reduces system complexity.
• The embedded Teach‐in push button and visual LED indicators (green for power, red for lens contamination/alarm) streamline commissioning and ongoing diagnostics.

Operational Advantages

• Micrometric precision measurement: With resolution down to 10 µm and linearity error as low as ±0.03 mm, the S67-Y Series is ideal for applications requiring high accuracy and fine tolerances.
• Industrial ruggedness: Metal housing, IP67 protection, laser emission and high immunity to ambient light ensure reliable performance in harsh manufacturing, packaging or robotics environments.
• Flexible output & setup: Availability of analog voltage or current outputs, teach-in interface and alarm indicators allow seamless integration into automation systems and quality control workflows.
• Applications: Suitable for automotive assembly, textile & paper processing, wood industry, packaging lines, metal tooling, assembly lines and special machinery where precise distance measurement, repeatability, compact installation and industrial reliability are mandatory.
