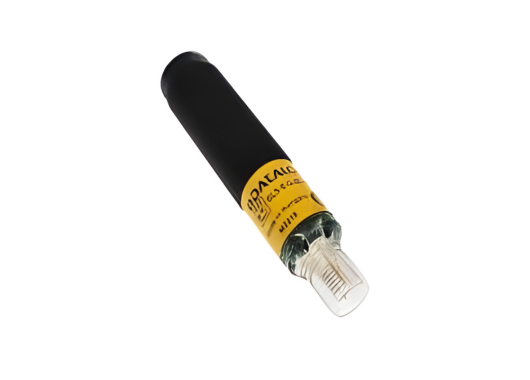

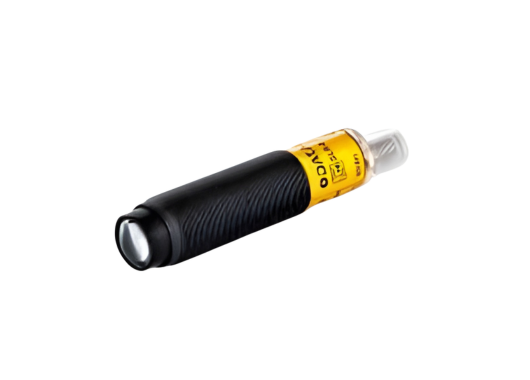

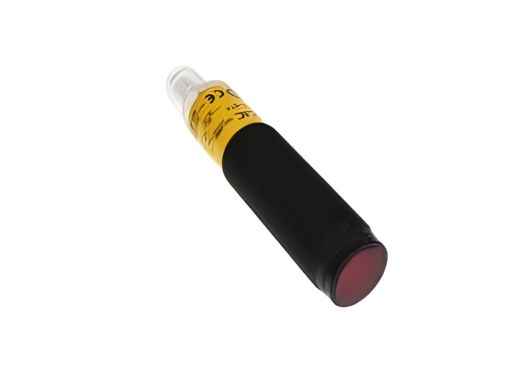

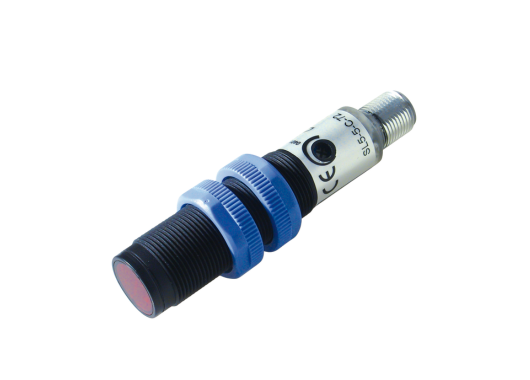

Photoelectric Cylindrical sensors SL5 Series

Datasensing SL5 Series

The SL5 Series delivers high-performance tubular photoelectric detection in an M18 cylindrical format, designed for demanding industrial and automation applications. With laser emission, adjustable sensitivity, and optical variants covering proximity, retro-reflective and long-distance through-beam types, these sensors provide versatile object detection, compact mounting, and industrial-grade robustness.

Design & Functionality

• The series uses a M18 × 1 cylindrical housing with a length of ~66 mm (Ø18 × 66) in a plastic ABS/PMMA body — enabling compact installations while maintaining professional sensor performance.
• Emission is red laser (650 nm, class 1), enabling precise beam focus, high repeatability and visible alignment.
• Nominal sensing distances vary by model: for example a diffuse-proximity model ~350 mm, through-beam receiver models up to ~60 m, offering long-span detection capability.
• Adjustable sensitivity via a trimmer is provided in many models, enabling adaptation to varying target sizes and distances — enhancing installation flexibility.
• Protection rating: IP67, ensuring reliable operation in dusty or moderately moist industrial conditions.

Total Crossed Beams

(In this context, “total crossed beams” refers to maintaining a reliable detection beam path spanning the sensing area, rather than literally crossed optical beams.)

• The SL5 Series ensures a clear and uninterrupted detection path — even when mounting clearance is tight or targets are small — supporting consistent detection and reducing the risk of false or missed triggers.
• This reliability is particularly valuable in high-throughput manufacturing, conveyor installations and packaging lines where detection must be accurate and repeatable.

Beam Pitch Options

(Here interpreted as selectable nominal sensing distances and optical variants rather than literal beam spacing.)

• Example: A proximity/diffuse model has a nominal sensing distance of ~350 mm for the SL5-5-C-82 variant.
• Example: A through-beam receiver model (SL5-5-F-82) shows a nominal sensing distance up to ~60 m.
• Example: A polarized retro-reflective model (SL5-5-B-92) offers a range of ~12 m in one variant.
• These variant options allow selection of the model that best suits target size, mounting clearance, background conditions and system speed — offering design flexibility.

Intrinsic Synchronism

• The electronics are fully integrated and self-contained — no external synchronising wiring is necessary — simplifying installation in compact systems.
• With laser emission, trimmer adjustment and indicator LEDs, commissioning is streamlined and detection stability is improved.

Operational Advantages

• Laser-precision detection: With red laser emission and fine-adjustment, the SL5 Series supports high repeatability and accurate detection of small or moving targets.
• High range options: With through-beam models up to tens of metres, the series covers short-range to very long-span detection tasks within one housing family.
• Compact form-factor: The M18 tubular housing fits into tight spaces, machines and conveyors where larger sensors may not.
• Applications: Ideal for automatic machines, packaging lines, transportation conveyors, ceramics machines, automatic warehouses — where versatile optical function, compact mounting, laser-based reliability, and industrial robustness are required.
