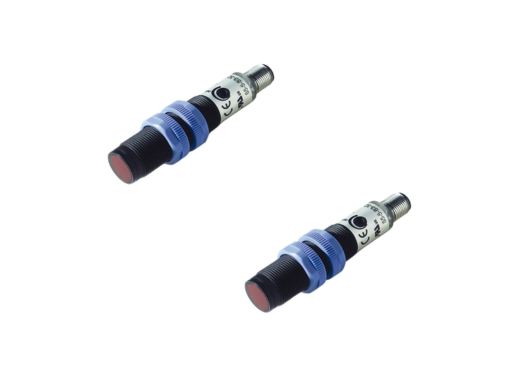

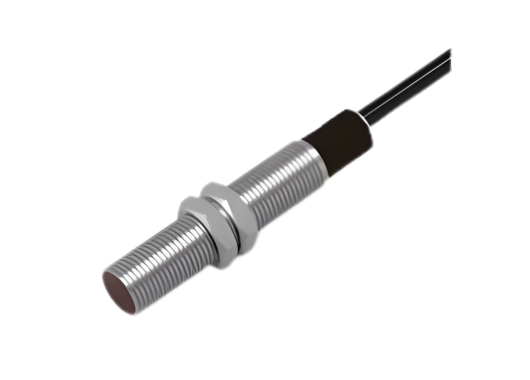

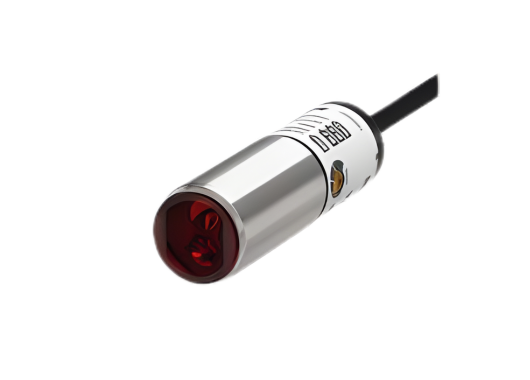

Photoelectric Cylindrical sensors S5 Series

Datasensing S5 Series

The S5 Series delivers a highly versatile family of tubular photoelectric sensors in a standard M18 form, designed for demanding industrial automation tasks. With models ranging from close-range detection to long-span through-beam sensing (up to 12 m nominal), the series provides flexible optical configurations, robust mounting, and industrial-grade durability.

Design & Functionality

• The series uses a tubular M18 × 1 housing (Ø18 mm) in a plastic ABS/PMMA housing, making it compatible with standard industrial mounts and compact systems.
• A broad range of optical functions is available: fixed-focus versions (e.g., 15–50 cm), diffuse-reflection, retro-reflective (up to ~4 m), through-beam (up to ~12 m) and fibre-optic variants.
• The series supports both cable and M12 connector options, and both 3-wire AC and 4-wire DC versions, with output types configurable as NPN or PNP and with Dark/Light mode.
• Many models offer sensitivity adjustment via trimmer, and a green stability LED (in addition to red output LED), enabling quick alignment and signal-monitoring during installation.
• Designed for industrial environments: the housing provides IP67 protection, ensuring performance in dusty or splash-exposed conditions.

Total Crossed Beams

(In this photoelectric-sensor context, “total crossed beams” is interpreted as ensuring a stable detection beam path or sensing zone rather than literal crossed optical beams.)

• The S5 Series ensures a consistent and reliable sensing zone, whether it’s a short-range fixed-focus, medium diffuse-reflection or long-range through-beam model. This means fewer missed detections and more reliable operation in automation systems.
• Installation and alignment are easier due to the built-in adjustment features and indicator LEDs — enabling faster commissioning and stable operation.

Beam Pitch Options

(Here interpreted as selectable sensing distance / optical configuration rather than literal beam pitch.)

• For example, the diffuse-reflection variant with ~600 mm nominal sensing distance (white target) is documented.
• Retro-reflective models reach up to ~4 m nominal sensing distance, through-beam models up to ~12 m.
• These options allow you to select the sensor variant based on target size, mounting clearance, background reflectivity or installation span — giving flexibility in system design.

Intrinsic Synchronism

• The electronics are fully integrated — no special synchronisation wiring is required — simplifying installation.
• Time-before-availability after power-up is ≤ 200 ms in many S5 variants.

Operational Advantages

• Wide optical flexibility: From fixed-focus to through-beam, the S5 Series adapts to varied detection tasks across automation, packaging, intralogistics and manufacturing.
• Compact and robust design: With tubular M18 housing and IP67 protection, the sensor fits into tight spaces while delivering industrial reliability.
• Easy installation & adjustment: Trimmers, indicator LEDs, selectable output modes and connector/cable options reduce commissioning time.
• Applications: Ideal for conveyor object detection, packaging line automation, presence/absence detection, material-handling systems, and general manufacturing where versatile optical configuration, industrial robustness, and compact mounting matter.
