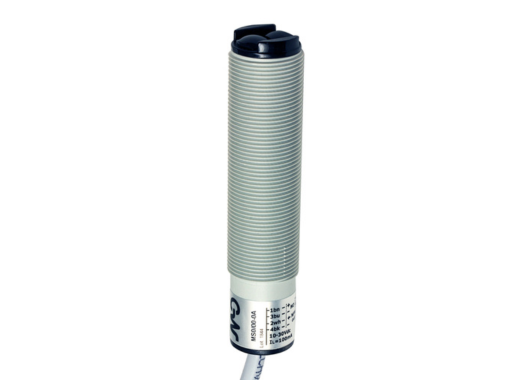

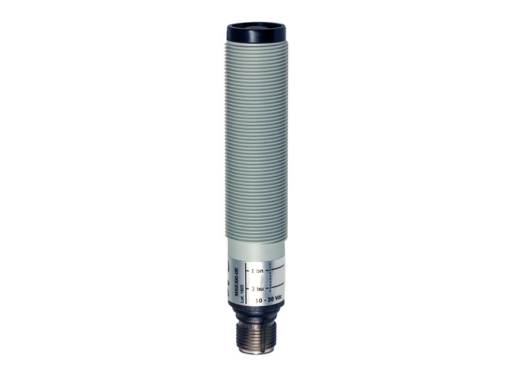

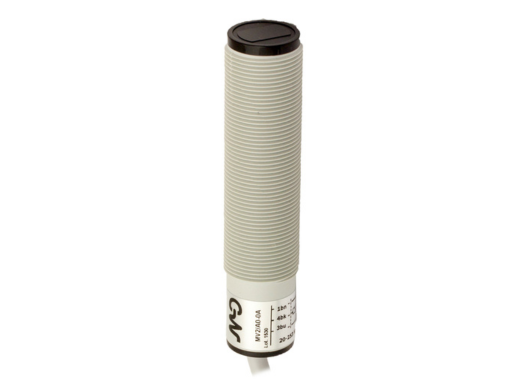

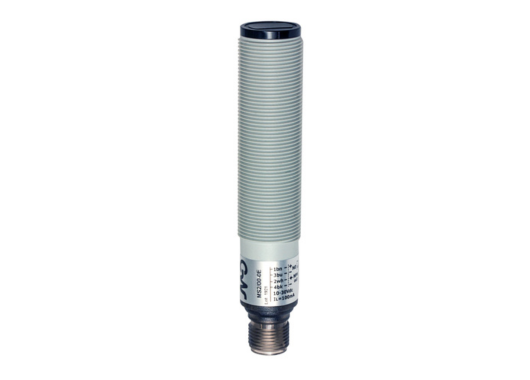

Photoelectric Cylindrical sensors MV-MQ Series

Datasensing MV-MQ Series

The MV-MQ Series delivers a highly flexible family of M18-threaded AC photoelectric sensors engineered for diverse industrial detection tasks. With the ability to select from diffuse-reflection, background-suppression (BGS), retro-reflective, and through-beam variants, this series provides versatile optical detection, industrial-grade protection, and wide-voltage compatibility — making it an excellent choice for automation, packaging, logistics and manufacturing environments.

Design & Functionality

• The series uses a M18 × 1 cylindrical housing, compatible with standard industrial mounts, combining robustness with ease of installation.
• Wide voltage input: 20…253 V AC 50–60 Hz, accommodating multivoltage AC supply systems and simplifying integration across varied infrastructures.
• Protection rating IP67 ensures reliable operation in dusty, damp or industrial-automation environments.
• Optical selection includes: diffuse reflection (e.g., nominal ~100 mm for one variant), BGS models (50 mm or 100 mm nominal), and long-distance through-beam/receiver models up to ~16 m nominal.
• Output type in many models: TRIAC AC output (for AC loads) with low leakage current and high load capability—ideal for controlling AC actuators or signals.

Total Crossed Beams

(In this photoelectric-sensor context, this corresponds to a consistent detection field and reliability rather than literal crossed optical beams.)

• The MV-MQ Series maintains a stable detection zone, even across varied optical modes and mounting distances. This means fewer false triggers and more consistent detection across the entire sensing field.
• As a result, you get high detection reliability in high-throughput automation systems, even when target presentation or background changes.

Beam Pitch Options

(Here interpreted as selectable sensing distances / optical variants rather than literal beam pitch.)

• For example: diffuse-reflection variant with nominal sensing distance ~100 mm.

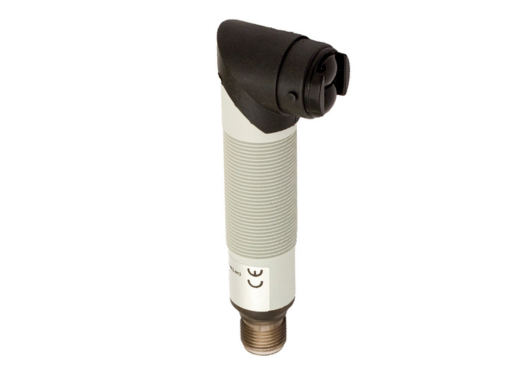

• BGS variant with nominal ~50 mm or ~100 mm nominal sensing distance (white target) in 90° optic form.
• Through-beam/receiver variants with very long sensing distances (e.g., ~16 m) for far-span applications.
• These variant options mean you can select the sensor to match your installation: compact clearance, reflective background, long-span detection or general object sensing.

Intrinsic Synchronism

• The electronics are fully integrated—no external synchronisation wiring or special modules required—making installation simpler and more reliable.
• Time before availability (after power-up) is typically ≤ 200 ms in many models.

Operational Advantages

• Wide voltage compatibility & optical flexibility: With 20…253 V AC supply and multiple optical principles, the MV-MQ Series fits diverse systems without needing multiple sensor families.
• Compact robust mounting: The M18 housing, IP67 protection and standard industrial thread make it easy to mount in equipment, conveyors or control cabinets.
• High performance across use-cases: From short-distance background-suppression to long-distance through-beam detection, this series covers a wide spectrum of detection tasks.
• Applications: Ideal for part-presence detection on conveyors, packaging line sensors, background-rich environments, long-span object detection in intralogistics, automated manufacturing lines where versatility, industrial durability, and AC-power compatibility are required.
