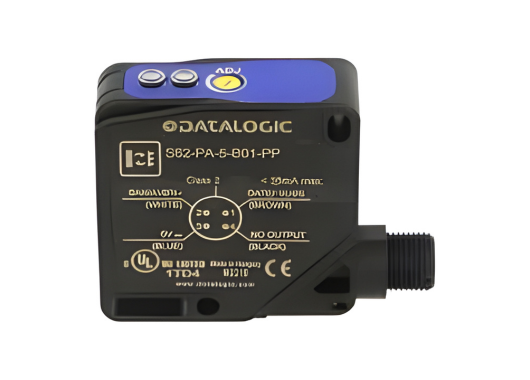

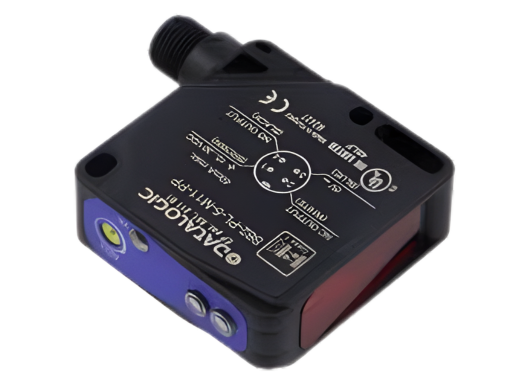

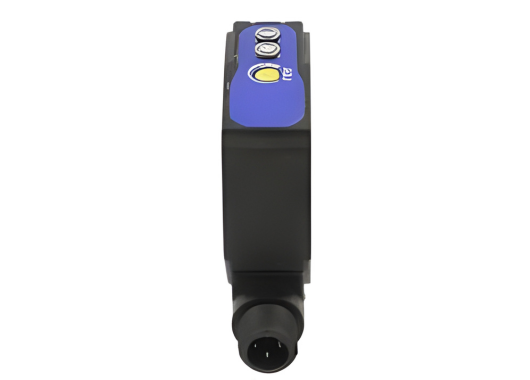

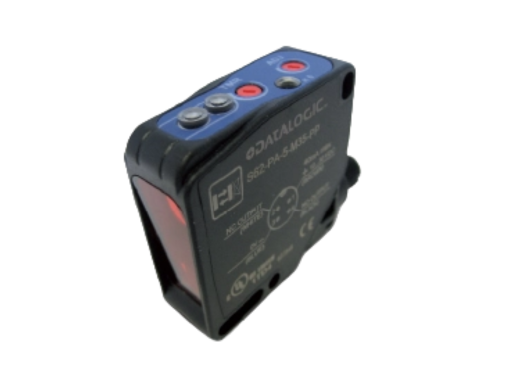

Photoelectric Cubic sensors S62 Series

Datasensing S62 Series

The S62 Series offers a complete family of compact universal photo­electric sensors, engineered for versatile installation, wide detection span, and industrial durability. With the same mechanical footprint for all optical variants, the series supports nominal sensing distances from a few centimetres to tens of metres — making it highly adaptable to diverse automation tasks.

Design & Functionality

• The S62 sensors utilise a standardised cubic housing (approx. 50 × 50 mm, depth ~18 mm), simplifying mechanical mounting, stock management and machine design.
• Optical mode variants include:
  • Background suppression models with ranges from ~30…300 mm or ~60…600 mm depending on optics.
  • Diffuse proximity models with nominal ranges ~0…900 mm (standard) or ~0…2000 mm (long) on white targets.
  • Polarised retro-reflective models with nominal spans ~0.1…8 m (LED) or up to ~20 m (Laser).
  • Through-beam (emitter/receiver) models with nominal spans up to ~0…25 m in standard versions.
• Supply voltage options include 10…30 V DC (for transistor output versions) or 24…240 V AC / 24…60 V DC (for relay versions) providing installation flexibility.
• Output options: NPN or PNP configuration, selectable NO/NC logic, and in some models relay outputs (SPDT) for AC/DC control systems.
• The housing is rated IP67 for mechanical protection, suitable for industrial dust or splash conditions.

Total Crossed Beams

(Here interpreted as ensuring a fully reliable detection field across the sensing area rather than literal crossed beams.)

• The S62 Series ensures a consistent detection zone across its wide span of optical modes and installation clearances — giving fewer missed detections, higher repeatability, and reliable performance in conveyor, packaging or machine-side applications.
• Because all variants retain the same footprint, machine designers and service staff benefit from uniform mounting and mechanical interchangeability.

Beam Pitch Options

(Here interpreted as variant options for sensing distance/optic rather than literal beam pitch.)

• Example: Background suppression ~30…300 mm or ~60…600 mm.
• Example: Diffuse proximity ~0…900 mm standard, or ~0…2000 mm long-range.
• Example: Polarised retro-reflective up to ~8 m (LED) or ~20 m (Laser).
• Example: Through-beam spans up to ~0…25 m.
• These options allow you to select an S62 model matched to your target size, mounting distance, background conditions and control logic — delivering design flexibility.

Intrinsic Synchronism

• The electronics and optics are integrated within the housing — no external synchronising modules are required — simplifying installation and reducing wiring complexity.
• With built-in trimmers, status LEDs, and standard housing across variants, setup, calibration and maintenance are streamlined.

Operational Advantages

• Versatile detection in one series: With background suppression, diffuse, retro-reflective and through-beam options, the S62 Series covers a broad spectrum of applications — reducing the need for multiple sensor families.
• Space-efficient footprint with full span capability: The compact 50×50 mm body accommodates both short-range and long-span detection without changing machine mounting design.
• Flexible integration: Multiple supply voltages, output logic choices and standard mechanical footprint enable seamless integration into a variety of machine control systems.
• Industrial robustness: IP67 protection, ABS/PMMA housing, multi-turn or mono-turn adjustment trimmers, and broad ambient conditions support challenging factory environments.
• Applications: Ideal for packaging machines, conveyor lines, intralogistics, material-handling systems, processing machines, and any environment where installation flexibility, detection span versatility, and reliable sensing are essential.
