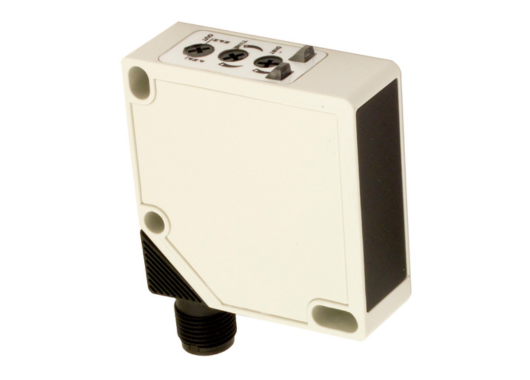

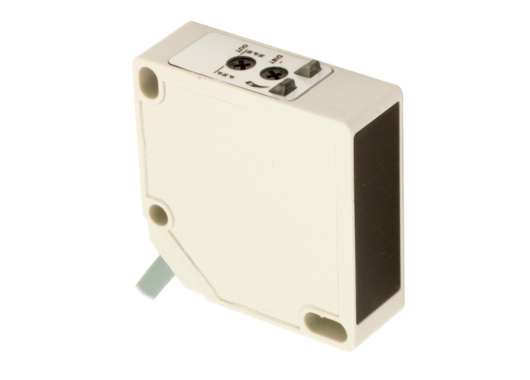

The Q50 Series delivers a flexible and high-performance family of cubic photoelectric sensors in a 50 × 50 mm housing, designed for broad application versatility, compact installation, and industrial robustness. With models spanning diffuse reflection, background suppression, polarized reflex, and through-beam detection up to 20 m, the series offers multi-mode detection, selectable logic/output types, and reliable performance across demanding automation environments.

Design & Functionality

• The series features a 50 × 50 mm cubic housing, enabling easy mounting in compact machine areas while supporting M12 connectors or cables for flexible wiring.
• Optical function variants include:
  • Diffuse-reflection detection up to ~2 m nominal.
  • Background-suppression (BGS) mode with nominal distances around ~500 mm.
  • Polarised reflex detection up to ~6 m.
  • Through-beam/Receiver modes with nominal sensing distances up to ~20 m.
• Output logic: For DC models, selectable NPN/PNP with NO + NC outputs; for multi-voltage models (AC/DC) selectable NO/NC SPDT relay versions.
• Switching frequency typical ~500 Hz with response time ~1 ms in many models, ensuring high-speed detection.
• The housing is rated IP67, making the sensor suitable for industrial environments with dust or wash-down exposure.

Total Crossed Beams

(In this context, this means the sensor ensures a consistent detection field across its sensing zone rather than literal crossed beams.)

• The Q50 Series maintains a stable detection field, even when mounted in compact spaces or with variable background reflectivity or target sizes — reducing mis-detections and improving reliability.
• This makes it particularly suitable for machine-side installations, conveyor object checks, packaging integration and automation zones where space is limited but performance demands are high.

Beam Pitch Options

(Here interpreted as selectable sensing-distance / optical-variant options rather than literal beam spacing.)

• Example: A BGS variant with nominal Sn ~500 mm on white target.
• Example: A diffuse/long-span variant up to ~1 m or more.
• Example: A through-beam mode variant with up to ~20 m sensing distance.
• These variant options allow selection of the model best suited for your target size, mounting clearance, background conditions and span — offering design flexibility.

Intrinsic Synchronism

• The electronics and optics are fully integrated — no external synchronisation modules or special wiring required — installation is simplified and quicker.
• Time before availability after power-up is typically ≤ 200 ms in many models.

Operational Advantages

• Versatile detection modes in a single housing family: With diffuse, BGS, reflex, and through-beam models, the Q50 Series covers a wide array of detection tasks without needing multiple sensor types.
• Compact cubic form-factor: 50 × 50 mm housing fits in restricted spaces, tight machine frames or conveyor structures while retaining full performance.
• Selectable logic & output flexibility: NPN/PNP or relay outputs, NO/NC selection make integration with different control systems straightforward.
• Industrial-grade build: IP67 rating, robust housing, LED indicators and high switching speeds support automation, packaging, intralogistics and manufacturing systems where flexibility, compact mounting, and reliable detection are required.
• Applications: Ideal for presence/absence detection on conveyors, object counting, packaging line checks, machine automation installations, background-rich detection, and installations where compact installation, multi-optics, and long-span capability are required.
