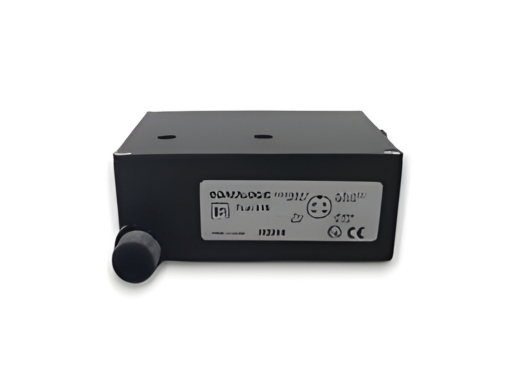

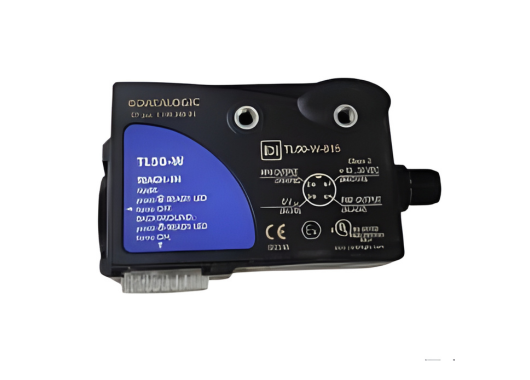

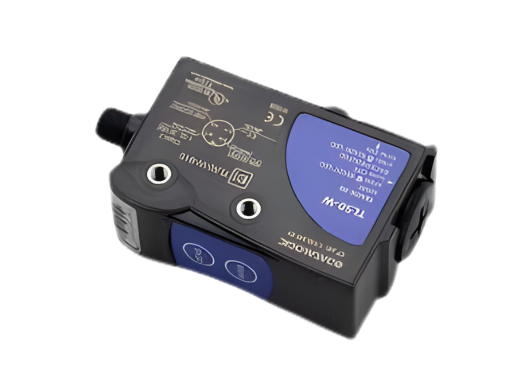

Photoelectric Contrast sensors S65-W Series

Datasensing S65-W Series

The S65-W Series offers a robust family of contrast sensors, engineered for ultra-fast mark detection, high-resolution contrast reading, and industrial-grade reliability. With a compact 50 × 50 × 25 mm housing and advanced optics, the series supports nominal sensing distances from approximately 12–20 mm (standard contrast mode) and features switching frequencies of up to 30 kHz — delivering exceptional precision, rapid detection, and stable performance in demanding applications.

Design & Functionality

• The sensors adopt a compact cubic housing (approx. 50 × 50 × 25 mm) making them easy to mount on packaging machines, print lines or automation frames where space is at a premium.
• Key optical features include:
  • Wide-spectrum white LED emission enabling detection of both coloured and neutral registration marks on various backgrounds.
  • Extremely high resolution (12-bit) and switching frequency up to 30 kHz, enabling high-speed detection of marks even on fast moving web, film or packaging material.
  • Spot dimension approximately 3×1 mm at ~19 mm working distance (for standard variant) ensuring fine-spot detection of contrast marks.
• Electrical & logic features:
  • Selectable output type (PNP or NPN) and selectable Light-On / Dark-On logic allow flexible integration into a wide range of control systems.
  • M12 connector versions, protection rating IP67, housing material ABS/PMMA — built for industrial usage.

Total Crossed Beams

(In this context, this term expresses the sensor’s ability to deliver consistent detection coverage across the sensing field rather than literal crossed optical beams.)

• The S65-W Series ensures a stable detection zone across its field of view and maintains consistent mark detection even with variations in target position, speed or contrast — resulting in fewer missed detections, improved repeatability and better process reliability.
• Its small-spot optics and ultra-high switching frequency make it especially suited for printing, packaging and web-handling systems where registration accuracy, high throughput, and minimal error events are essential.

Beam Pitch Options

(Here interpreted as variant options for sensing distance / spot size rather than literal beam pitch.)

• Example variant: Nominal sensing distance ~12 mm for standard contrast mode (switching freq. up to 30 kHz).
• Example variant: Nominal sensing distance ~20 mm (or more) depending on model and optical configuration.
• These variant options allow you to select an S65-W model that matches your mark size, mounting clearance, background contrast, and conveyor speed — providing design flexibility.

Intrinsic Synchronism

• The optics, electronics and logic are integrated within one compact unit — no external synchronisation modules are required — simplifying wiring and reducing installation complexity.

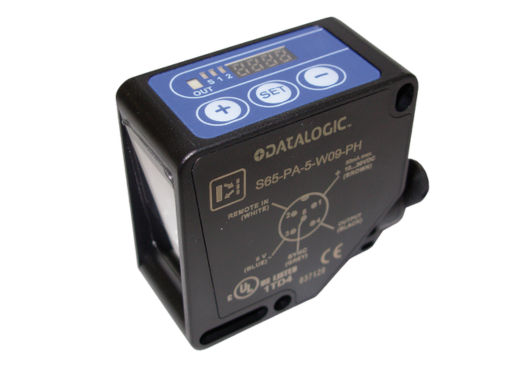

• With built-in push-button setup (SET / SEL) and a 4-digit display for configuration and signal monitoring in many models, commissioning and adjustment are fast and intuitive.

Operational Advantages

• Ultra-fast mark detection: The S65-W’s switching frequency up to 30 kHz and response time in the micro-second range allow reliable detection of minute registration marks on fast-moving materials.
• High-resolution contrast sensing: The 12-bit resolution enables fine discrimination of contrasts, ensuring less false triggering and better stability even under varying lighting or material conditions.
• Compact form with flexible integration: The standard 50 × 50 × 25 mm housing, selectable logic/output, M12 connector and IP67 rating make the sensor easy to install and integrate into automation systems.
• Applications: Ideal for print registration mark detection, packaging film presence, label edge detection, web monitoring, bottle or can mark reading in high‐speed production lines — where speed, accuracy, and compact installation are required.
