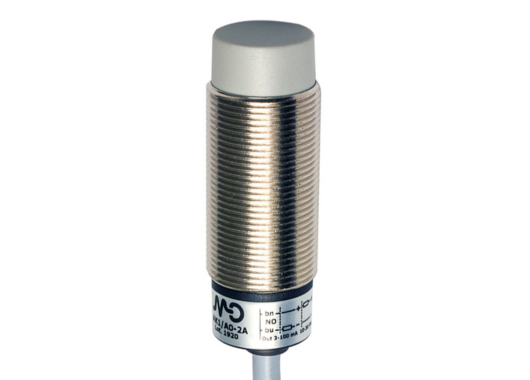

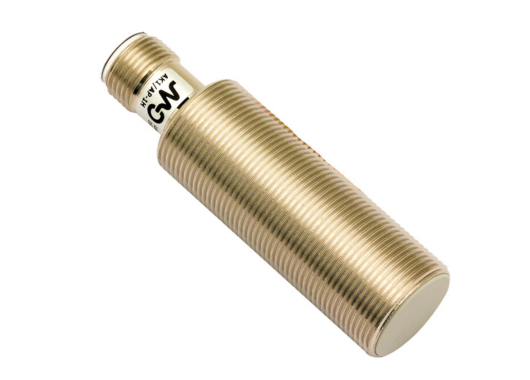

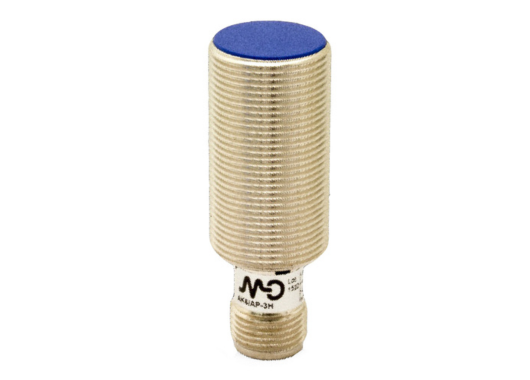

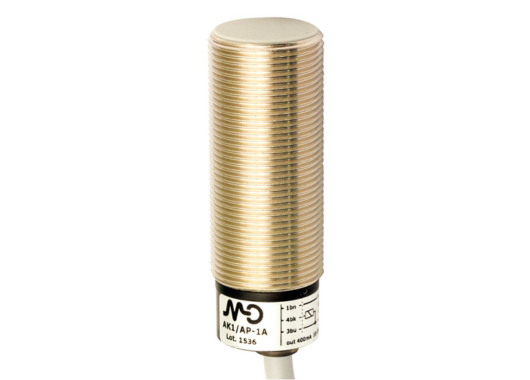

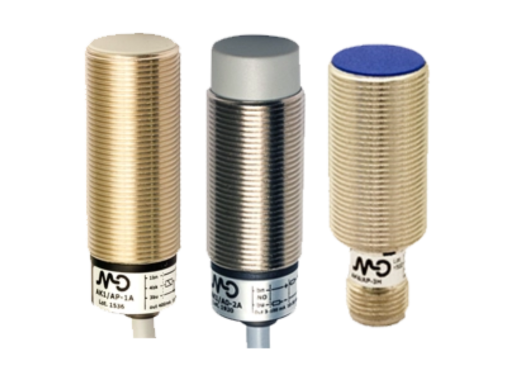

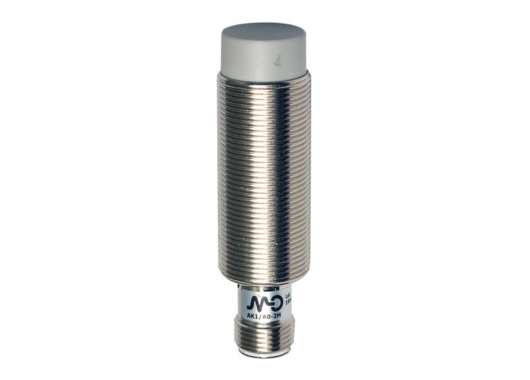

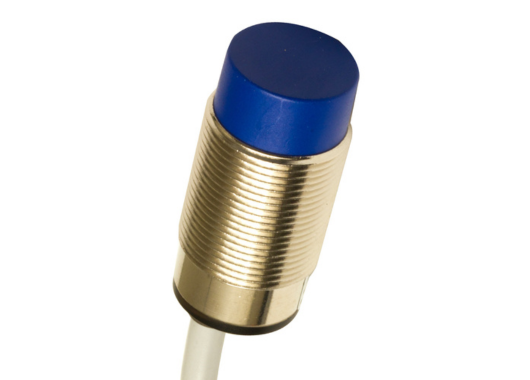

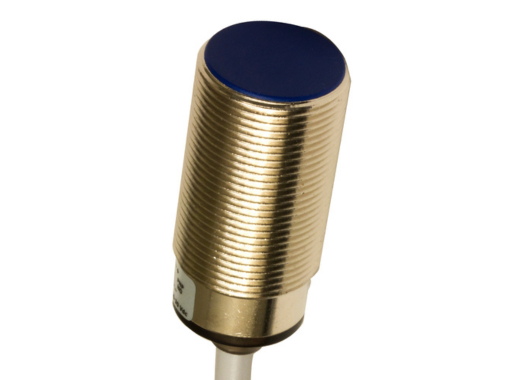

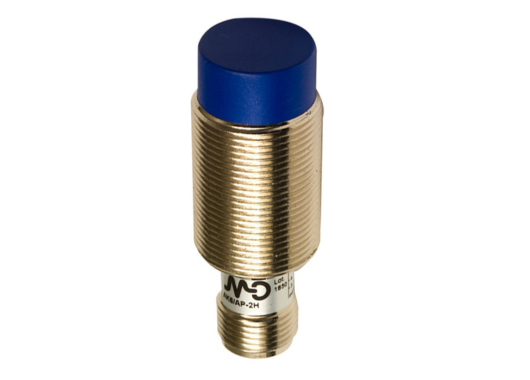

Inductive Cylindrical sensors AK Series

Datasensing AK Series

The AK Series delivers industrial-grade inductive sensing in a standard M18 cylindrical housing, designed for demanding material-handling and intralogistics environments. With a broad range of variants—including standard, long-distance, flush-mount and non-flush mount—the AK Series ensures reliable detection of metal parts across conveyor systems, sorting lines and AGVs.

Design & Functionality

• The sensors are housed in a nickel-plated brass M18 body, combining robustness and ease of integration in industrial automation settings.
• Variety of sensing distances: standard ~5 mm (shielded), ~8 mm (unshielded), long-distance up to ~12 mm; enabling you to choose the most suitable clearance for your installation.
• Multiple connection and mounting options: axial cable, right-angle cable, M12 plug; suite of output logics (NO, NO+NC) and both shielded and unshielded variants.
• Built-in robust electronics: reverse-polarity protection, short-circuit auto-reset, impulsive over-voltage protection, and ripple tolerance ≤ 10% ensure stable performance in harsh environments.

Total Crossed Beams

(In the context of inductive sensing, this equates to the consistent detection field across the target face even under varying conditions.)

• The AK Series maintains a stable sensing zone regardless of mounting or target alignment, making it effective for consistent detection of metal parts on conveyors or pallets.
• This ensures high repeatability (< 5%) and low thermal drift (< 10%) for dependable operation.

Beam Pitch Options

(Here interpreted as selectable nominal sensing distances and mounting types rather than literal beam pitch.)

• Models available include approx. 5 mm shielded, 8 mm unshielded, 12 mm long-distance unshielded, giving you flexibility depending on object size, clearance and background.
• Detailed specification includes correction factors for different materials (copper, aluminum, brass, stainless steel) ensuring you can tune for specific metal types.

Intrinsic Synchronism

• Internal electronics handle synchronisation and signal processing, reducing external wiring complexity and making installation faster and more reliable.
• Time-before-availability is ≤ 50 ms, meaning the sensor is ready quickly after power-up.

Operational Advantages

• High Flexibility: With numerous variants (shielded/unshielded, cable or plug, standard/long-range) the AK Series adapts to many intralogistics and automation tasks.
• Robust Performance: Industrial-grade protection (IP67), broad sensing distances and metal-target correction factors make it reliable across conveyors, sorting lines and AGVs.
• Applications: Perfect for conveyor & sorting systems, end-of-line equipment, palletising, AGV/AMR fleets, warehousing automation where metal-part detection, wide mounting variation and industrial robustness are required.
