Inductive Cylindrical sensors AC1 Series

Datasensing AC1 Series

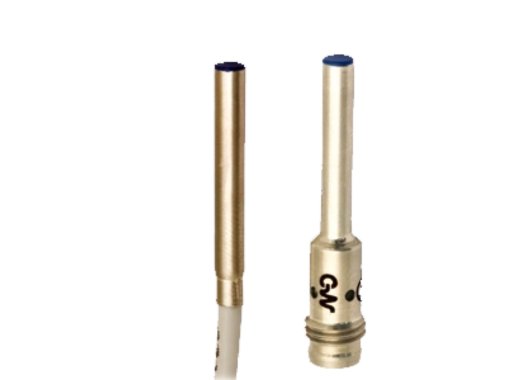

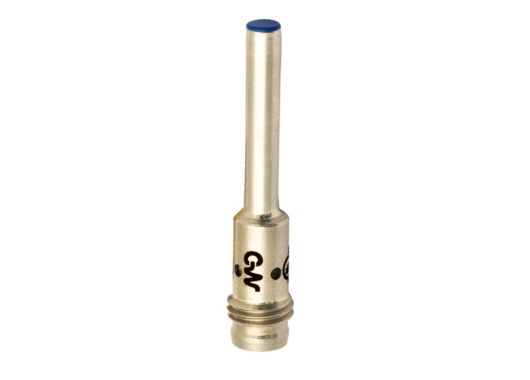

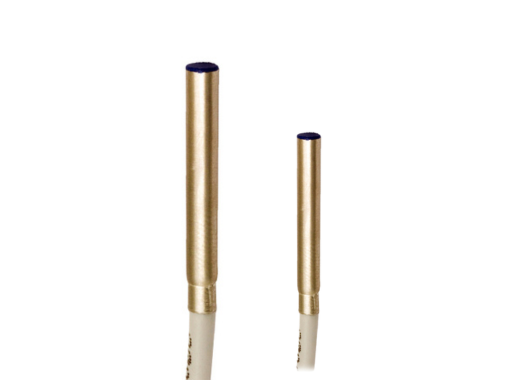

The AC1 Series delivers high-precision inductive detection in a highly compact Ø 4 mm form-factor, engineered for installations where space is severely limited. With nominal sensing distances down to around 0.8 mm and integrated ASIC electronics, these sensors provide exceptional repeatability and reliability even in harsh manufacturing environments.

Design & Functionality

• The sensor features a Ø 4 mm stainless-steel (or equivalent) body with ultra-short mounting distance, making it suitable for very tight mechanical layouts.
• With nominal sensing distances of approximately 0.8 mm (shielded version) or 1.5 mm (long-distance version) depending on the variant, the AC1 supports detection of very small metal targets in minimal clearances.
• Built-in ASIC electronics deliver high repeat accuracy, low thermal drift, and protective functions including reverse-polarity protection, short-circuit auto-reset and ripple tolerance — ensuring robust operation under industrial conditions.
• Switching frequency up to ~5 kHz allows use in faster automation tasks where small parts or high throughput are involved.

Total Crossed Beams

(In this inductive sensor context, this concept translates to a consistent magnetic sensing field across the very small active face.)

• Maintains a stable detection field even at ultra-short distances, allowing reliable sensing of small or thin metallic objects despite positional variances or mounting background interference.
• Supports repeat-able and precise detection of micro-components or small metal targets in dense assemblies.

Beam Pitch Options

(Here this corresponds to selectable sensing distances and detection resolution rather than literal optical beams.)

• Nominal sensing distances offered are ~0.8 mm and ~1.5 mm depending on shielded or long-distance model, enabling selection between ultra-short range for flush mounting and slightly greater range for more flexible clearance.
• Typical repeat accuracy is around ±5%, and thermal drift is less than 10%, which ensures stable performance over time and temperature variation.

Intrinsic Synchronism

• On-board electronics provide full synchronisation and built-in protective features, removing the need for external synchronising wiring or additional modules. This simplifies installation and boosts reliability.
• The sensor is ready quickly after power-up (time-before-availability ≤ ~50 ms in many models), making it suitable for rapid cycling and high-speed processes.

Operational Advantages

• High Switching Frequency: Up to ~5 kHz (depending on model) enables detection of high-speed metal objects in automated lines.
• Easy Configuration: With ultra-compact size and standard outputs, the AC1 integrates seamlessly into constrained automation cells, robotics, assembly machines or micro-mechanical systems.
• Applications: Ideal for electronics manufacturing (PCB insertion, micro-assemblies), automotive component sensing, robotics end-effectors, and any industrial automation scenario requiring miniaturised form-factor, very short detection distance, and industrial-grade protection.
