Hybrid sensors US18 Series

Datasensing US18 Series

The US18 Series provides a comprehensive family of ultrasonic sensors, engineered for reliable detection of objects, transparent or shiny surfaces, and distance measurement in harsh conditions. With axial or right-angle housings, configurable outputs and fast teach-in setup, the US18 Series delivers outstanding measurement accuracy, material-independent detection, and installation flexibility across industrial, packaging, automotive and intralogistics environments.

Design & Functionality

• The US18 sensors utilise ultrasonic waves rather than optical reflection, enabling detection of transparent films, liquids, dark or shiny parts, and objects with varying reflectivity.
• Key features include:
  • Wide operating range, from approximately 200 mm up to 8 m depending on model.
  • Analogue output models (0-10 V / 4-20 mA) and digital output models (PNP/NPN NO/NC), enabling both distance measurement and discrete switching.
  • Push-button or remote teach-in enabling quick setup without external tools or potentiometer adjustments.
  • Temperature compensation for consistent performance across –20 °C to +70 °C, reducing signal drift over a wide temperature span.

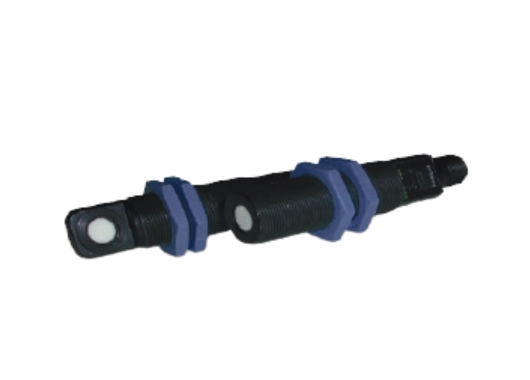

  • Robust industrial housings (M18 tubular or angular formats) with IP67/NEMA 6P-rated protection for harsh production environments.
• The US18 Series is suitable for high-speed conveyors, packaging machines, automotive assembly, material handling and any application where accurate ultrasonic sensing is required.

  Important: The US18 Series offers transparent material detection, long-range capability up to 8 m, and dual-output flexibility, making it a versatile and robust sensor choice.

Total Crossed Beams

(Interpreted as full field coverage achieved via ultrasonic sensing instead of literal beams)

• The US18’s ultrasonic transducer generates a consistent sensing field, ensuring that variations in object surface or orientation cause minimal effect on detection results.
• This results in greater repeatability, fewer false detections, and improved reliability in automated production lines.

Beam Pitch Options

(Interpreted as sensing range and housing variation)

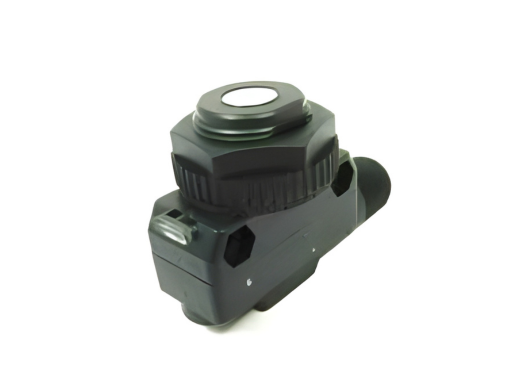

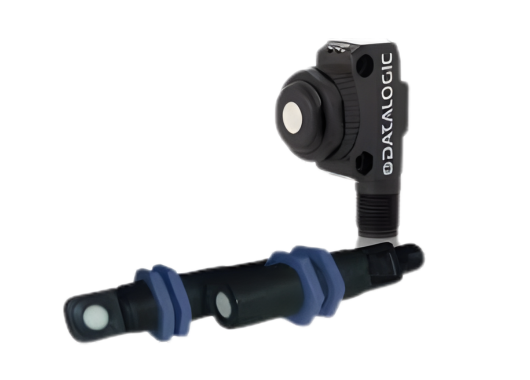

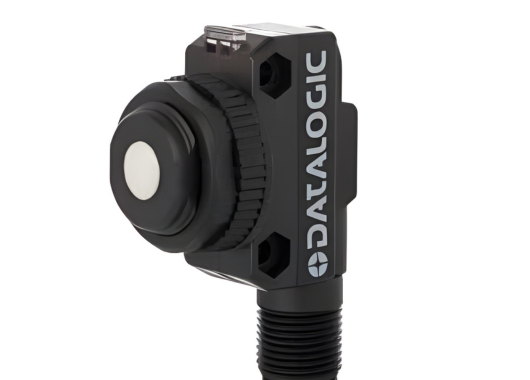

• Models exist in both axial emitting (tubular M18) and radial/right-angle formats, providing flexible installation orientations.
• Detection ranges vary significantly (for example 200 mm – 8 m) according to model and output type.
• These variants allow you to choose the US18 model that best suits your spacing, object size, mounting position and detection range — offering design flexibility.

  Important: The wide range of models (housing, output, range) ensures the US18 Series can adapt to many machine configurations and application types.

Intrinsic Synchronism

• Built-in electronics handle ultrasonic emission and reception automatically, with no external synchroniser required.
• Multi-sensor installations are supported without crosstalk, enabling stable operation even when several sensors are operating in close proximity.

Operational Advantages

• Material-independent detection: works reliably on transparent, shiny, dark or reflective surfaces.
• Long detection range: up to ~8 m in some variants.
• Flexible interface: analogue and digital outputs for distinct application needs.
• Simple installation & configuration: teach-in function and compact industrial housing.
• Durable and reliable: designed for harsh environments, heavy manufacturing, packaging and logistics.

Applications

• Transparent label or film detection
• Liquid level or bulk material measurement
• Object presence/distance on conveyors
• Automotive assembly and robotic positioning
• Packaging and intralogistics systems
• High-speed distance monitoring where optical sensors are challenged
