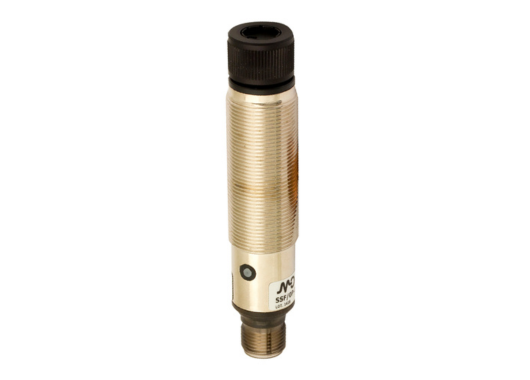

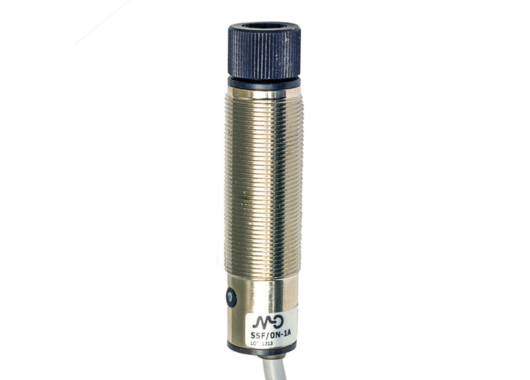

Fiber optic amplifiers SSF Series

Datasensing SSF Series

The SSF Series provides a premium family of stainless-steel photo-electric sensors, engineered for robustness in challenging environments, high-performance detection, and sanitary/hygienic ready construction. With all metal AISI 316L housings, high switching frequency (several kHz), rugged connectors or cable versions, and ratings up to IP69K, the series delivers exceptional durability, long service life, and secure detection even under extreme industrial conditions.

Design & Functionality

• The SSF sensors feature a rugged stainless-steel (AISI 316L) housing with compact dimensions suitable for machine-side mounting in harsh, wash-down or food-safe environments.
• Optical and configuration features include:
  • High switching speed and fast response time, enabling reliable detection in high-throughput production lines.
  • Selectable logic (PNP or NPN) and Light-On / Dark-On modes, enabling flexible integration into diverse control systems.
  • IO-Link or standard I/O variants available, supporting diagnostics, parameter tuning and industry-4.0 connectivity where required.
• Mechanical & environmental robustness: The sensors are designed to resist high-pressure cleaning, corrosion and mechanical stress; they carry industrial protection ratings up to IP68/IP69K, making them suitable for food processing, pharmaceuticals, chemical plants and other demanding environments.
• Mounting flexibility: Available in multiple housing sizes (M12, M18) and connector/cable options, the SSF family supports space-constrained installation while maintaining high performance.

Total Crossed Beams

(In this context, this term is used to mean consistent, reliable detection coverage across the sensing field rather than literal crossed optical beams.)

• The SSF Series ensures a stable detection zone, even when subjected to changing ambient conditions, frequent cleaning, or machine-side vibration — resulting in fewer missed detections, higher repeatability, and longer-term reliability.
• Its robust stainless construction combined with high switching speed means it can be deployed in tough environments without sacrificing detection performance.

Beam Pitch Options

(Here interpreted as variant options of switching speed / housing size / detection range rather than literal beam spacing.)

• Example variant: M12 stainless housing, standard switching speed for general industrial detection.
• Example variant: M18 stainless housing, high-speed variant for fast conveyor detection under wash-down conditions.
• Example variant: IO-Link advanced diagnostic model with the same stainless housing.
• These variant options allow selection of an SSF model that matches your mechanical footprint, environment (wash-down vs dry), speed and connectivity requirements — offering design flexibility.

Intrinsic Synchronism

• The SSF sensors integrate optics, electronics and communication / I/O interface within the same housing — no external synchronisers or add-on modules are required — simplifying wiring, installation and maintenance.
• With built-in LEDs or interface feedback, the sensors support fast commissioning, easy diagnostics, and low maintenance overhead in demanding industrial conditions.

Operational Advantages

• Industrial-strength construction: The AISI 316L stainless-steel housing with IP68/IP69K rating enables use in harsh environments such as food & beverage, chemical processing, automotive wash-down and outdoor installations.
• High-speed, reliable detection: With switching frequencies of several kilohertz and selectable logic, the SSF Series handles high-throughput applications while maintaining detection certainty.
• Flexible integration: With versions offering IO-Link connectivity, selectable outputs and compact stainless housings, the series fits into varied automation architectures without compromise.
• Applications: Ideal for hygienic production lines, food & beverage processing, pharmaceuticals, chemical plants, automotive sub-assemblies, conveyors under high-wash conditions — where robust physical construction, high switching capability, and reliable detection under stress and cleaning are required.
