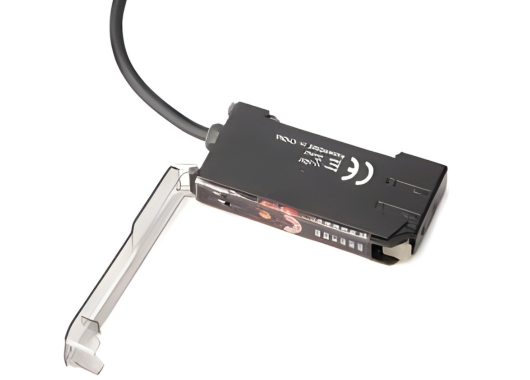

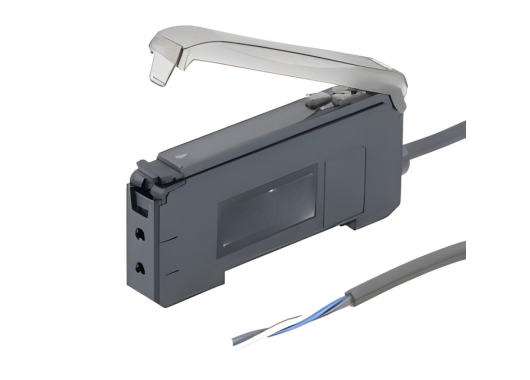

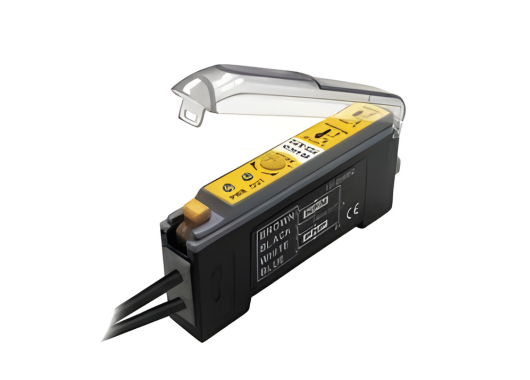

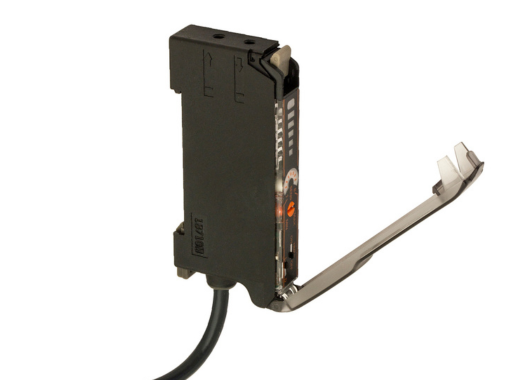

Fiber optic amplifiers F1 Series

Datasensing F1 Series

The F1 Series presents a high-performance family of fibre-optic amplifier modules, engineered for versatile fibre-optic sensor integration, fast detection, and industrial reliability. With models supporting a wide variety of fibre-optic heads, response times up to 200 µs, switching frequencies around 2.5 kHz, and a rugged IP67 housing, this series provides exceptional speed, flexible configuration, and compact form-factor.

Design & Functionality

• The module is built in a very compact housing (10 × 31.5 × 64.3 mm) enabling installation in tight control-panels or machine side-channels.
• Optical fibre input: supports a variety of fibre-optic heads with detection properties determined by the fibre used; repeat accuracy ≤ 5%.
• Output configuration: PNP output type with NO/NC selectable, Light-On/Dark-On selectable.
• Switching capability: Up to ~2.5 kHz switching frequency; response time up to 200 µs max — enabling rapid detection of fibre-optic signals.
• Supply and current: Operating voltage 12…24 V DC; no-load current ≤ 35 mA; load current ≤ 50 mA.
• Mechanical & environmental: Housing material PBT/PC; protection rating IP67; operating temperature –25 °C to +55 °C.

Total Crossed Beams

(In this context, this phrase is adapted to mean that the amplifier supports full fibre-optic sensor coverage across its detection setup rather than literal crossed optical beams.)

• The F1 Series ensures a stable detection interface when used with fibre-optic heads, even when installed in compact control enclosures, resulting in fewer missed signals, higher repeatability, and better operational reliability in automated lines.
• Its compact form and functionality make it highly suitable for retro­fitting fibre-optic sensors into machinery where space is limited but performance must not be compromised.

Beam Pitch Options

(Here interpreted as variant options of fibre-optic head compatibility and amplifier variant rather than literal beam spacing.)

• Example variant: Standard amplifier with trimmer sensitivity.
• Example variant: Amplifier with Teach-In functionality.
• These variant options allow you to choose an F1 model matched to your chosen fibre-optic head type, sensing range, mounting clearance and environmental condition — offering design flexibility.

Intrinsic Synchronism

• The optics, electronics and configuration logic are integrated into the same compact housing — no external synchroniser required — simplifying wiring and reducing installation complexity.
• With built-in indicator LEDs (output active, signal level), selectable output logic and compact size, the F1 series supports fast commissioning, easy adjustment, and robust performance.

Operational Advantages

• Compact size with full fibre-optic amplifier capabilities: The F1 Series delivers fibre-optic detection amplification in a small footprint ideal for machine side panels or conveyor control cabinets.
• Flexible configuration: With sensitivity trimmer or Teach-In, selectable NO/NC and Light/Dark, PNP output, the amplifier integrates into diverse automation systems.
• High-speed detection: Response time of 200 µs and switching frequency ~2.5 kHz enable the system to keep pace with fast signals in high-throughput operations.
• Industrial robustness: IP67 housing, trimmer or digital configuration, and wide ambient temperature range make the series suitable for automated manufacturing, packaging lines, conveyor systems, and fibre-optic sensor networks.
• Applications: Ideal for fibre-optic sensor setups where space is limited, such as packaging machine side-frames, bottling lines, conveyor inspection modules, pick-and-place sensors, and any scenario requiring compact amplifier, fast response, and reliable signal detection.
