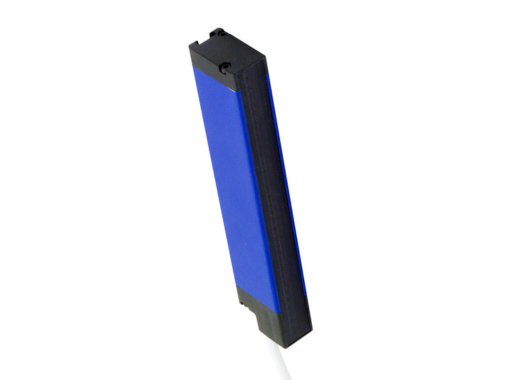

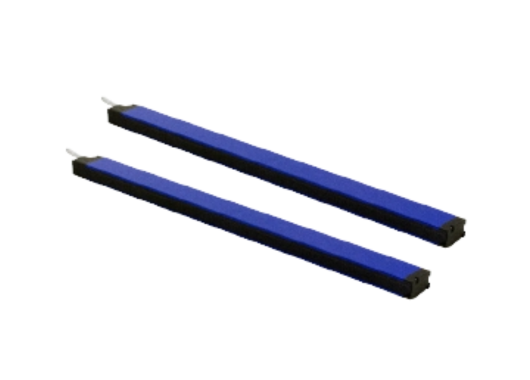

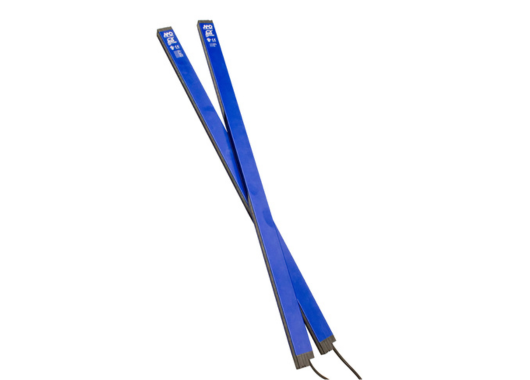

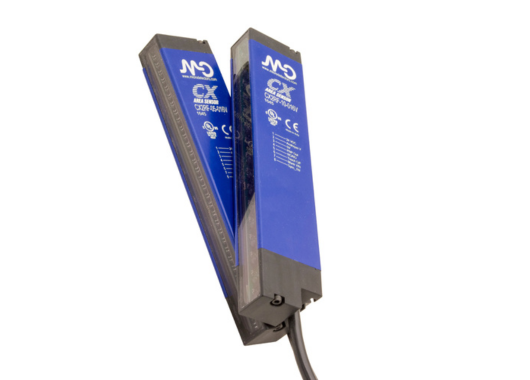

Detection Measurement area sensors CX2 Series

Datasensing CX2 Series

The CX2 Series from Datasensing offers high-resolution area monitoring through a crossed-beam and parallel-beam optical architecture. Instead of detecting at a single point, these sensors monitor an entire detection zone—ensuring consistent detection of objects regardless of their shape, position or orientation.

Design & Functionality

The CX2 series features a compact housing and modular design, integrating emitters and receivers in configurations with controlled detection heights up to 960 mm. Beam pitch options include 5 mm, 10 mm and 20 mm, allowing you to balance resolution and range according to application requirements. Operating distances extend up to 3 m (with 5 mm pitch) and up to 6 m with 10 mm or 20 mm pitch models.

Beam Architecture & Resolution

• Parallel beams and floating crossed beams provide full-field coverage in a compact footprint.
• Beam pitch options: 5 mm for highest resolution, 10 mm or 20 mm for larger fields and longer distances.
• Controlled height options: up to 480 mm (5 mm pitch) and up to 960 mm (10/20 mm pitch) provide flexibility for different installation heights.
• Minimum detectable object size around Ø 10 mm (typical) in standard configurations, depending on model and beam pitch.
• Output options include digital (NPN/PNP), analogue voltage (0…10 V) and current (4…20 mA) to interface with automation systems.
• Adjustment via teach-in and blanking functions simplify configuration and exclude unwanted objects or zones.

Operational Advantages

• High flexibility in height and resolution makes the CX2 series adaptable to packaging, conveyor and sorting systems requiring detection or measurement of items across a field.
• Compact design for installation in tight spaces while still providing broad coverage.
• Reliable performance with teach-in, blanking and mixed output options enable integration into advanced automation systems.
• Suitable for applications where both presence detection and dimension measurement are required across a plane rather than just a point.

Applications

The CX2 Series is ideal for:

• Conveyor & material handling systems with variable object sizes and high throughput
• Packaging machinery measuring or detecting products across widths or heights
• Intralogistics and end-of-line automation where detection of large or small objects across an area is needed
• Manufacturing lines requiring measurement or presence verification of items like mattresses, trays, boxes or panels

With its combination of high resolution, variable height, and flexible outputs, the CX2 series offers a robust solution for detection and measurement tasks in demanding industrial installations.
