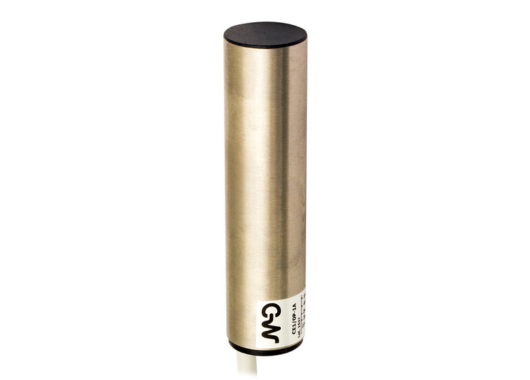

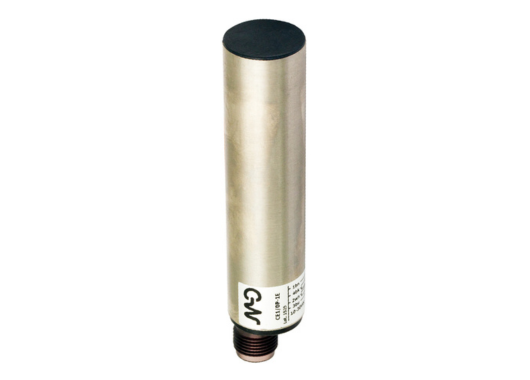

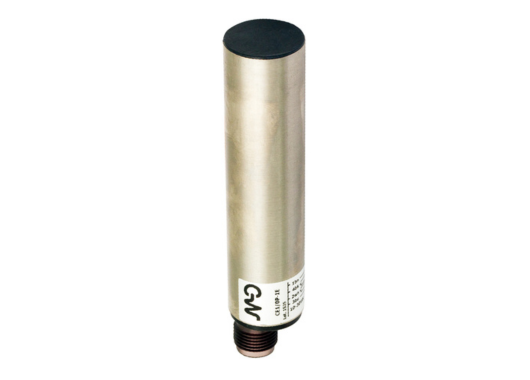

Capacitive Cylindrical sensors CE Series

Datasensing CE Series

The CE Series delivers versatile and reliable capacitive proximity sensing for industrial detection tasks across a wide range of materials—solids, liquids and powders. Models provide adjustable sensitivity, complementary outputs (NO + NC) and options with self-monitoring to enhance system safety and diagnostics.

Design & Functionality

• Housed in a stainless-steel cylindrical body (Ø 20 mm), the CE Series is built for harsh industrial conditions and tight mounting.
• Its sensitivity adjustment (via trimmer) enables fine-tuning of detection thresholds to suit different materials or mounting backgrounds.
• Available with or without self-monitoring functionality, allowing increased reliability and early fault detection in critical automation installations.
• Output configuration: dual complementarity (NO + NC) ensures flexible integration into safety/monitoring systems.

Total Crossed Beams

(Note: As this is a cylindrical capacitive sensor rather than an area sensor, the equivalent concept is the stable capacitive detection field across the end face.)

• Ensures the sensor detects any object entering its field reliably, regardless of slight positional variation or material composition.
• Supports consistent performance even in applications with transparent, irregular, or mixed-material targets.

Beam Pitch Options

(In the context of the CE Series, this corresponds to the selectable sensing distances and resolution of detection.)

• Nominal sensing distances range from approximately 1.5 mm up to 10 mm, model-dependent.
• Repeat accuracy is high (≈ 5 %) and thermal drift is limited (< 20 %), which helps maintain stable detection over time and temperature variation.

Intrinsic Synchronism

• Built-in electronic mechanisms provide reverse-polarity protection, short-circuit auto-reset, and high ripple immunity — reducing installation faults and boosting reliability.
• The sensor supports a fast time-before-availability ≤ 200 ms, ensuring quick readiness in automated production starts.

Operational Advantages

• High Switching Frequency: Up to ~300 Hz in certain models, enabling use in faster automation tasks.
• Easy Configuration (Teach-In/Trimmer): Sensitivity adjustment ensures the sensor can be tuned quickly to the specific target material and background mount, reducing setup time.
• Applications: Ideal for detecting metals, plastics, ceramics, liquids and powders across diverse sectors such as packaging, automotive, electronics and general manufacturing. The CE Series is particularly beneficial where compact design, material flexibility, and robust industrial protection are required.
