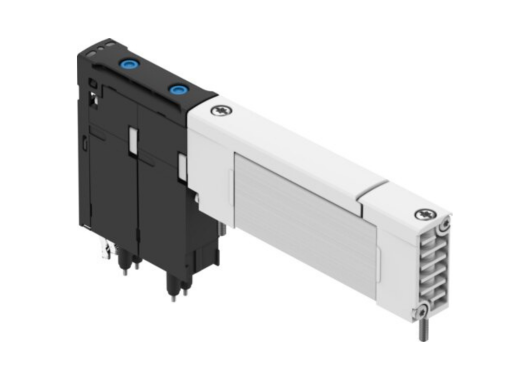

Universal Directional Control Valves

Festo Universal Directional Control Valves

Festo’s universal directional control valves provide a flexible, high-performance solution for controlling actuator motion and pneumatic circuits across diverse automation scenarios. They are engineered to deliver reliable switching, strong flow capacity, and simplified integration in systems where one valve family can meet multiple functions.

These valves support a range of designs, switching positions and flow paths, and offer both solenoid-actuated (electric) and pilot-actuated (pneumatic) variants. Their universal architecture makes them ideal for applications demanding high throughput, compact installation, and modular manifold mounting.

⭐ Important: Universal directional control valves offer maximum flexibility by accommodating diverse switching functions, actuation types and mounting configurations in one valve family.

Design & Functionality

Universal directional control valves change the direction of compressed air by opening, closing or diverting the flow within the valve body. They are typically built with spool or poppet internals, and can handle multiple ports and switching states (for example 3/2, 5/2, 5/3) depending on the chosen variant.

From electric solenoid versions to pilot-operated models, they serve a broad spectrum of automation requirements such as cylinder control, gripper actuation, vacuum generation, and pneumatic logic systems. Their modular design allows installation as individual valves or as valve blocks/manifolds for compact machine integration.

⭐ Important: Support for both electric and pneumatic actuation ensures that these valves can be used in varying control architectures—whether driven by PLCs or by compressed-air logic systems.

Total Crossed Beams

(Applied to the functional coverage of valve families)
With the universal valve series, Festo covers a full range of flow capacities, switching functions and actuation styles within a single product family. This ensures that system planners and machine builders can standardise on one valve family but still meet widely varying performance demands.

Designed to maintain stable flow performance, repeatable switching and integration flexibility across the board, the universal valve family simplifies inventory, design reuse and machine servicing.

Beam Pitch Options

(Translated as: switching functions, actuation types, construction options)
The universal valves offer:

• Multiple switching functions: 3/2, 5/2 (single or double solenoid), 5/3 (centre-closed, centre-exhaust, centre-open)
• Actuation types: Electric solenoid (various voltages) or Pneumatic pilot/servo
• Mounting options: Individual valve, manifold/connector block, base plate mounting
• Flow variants: Standard flow, high flow-rate versions
• Accessory options: Manual override, LED diagnostic (for electric solenoid types), different port sizes and materials

⭐ Important: The variety of functions and options means the universal valve can be optimized for speed, throughput, space constraints or cost depending on the application.

Intrinsic Synchronism

The spool/valve internals are designed to provide tight switching tolerances, minimal internal leakage and consistent performance over time—even under high duty cycles. Optional sub-bases or manifolds ensure that multiple valves in a block operate synchronously and can be serviced or replaced with ease.

This synchronism supports machine repeatability, simplified maintenance, and predictable pneumatic behavior in critical automation loops.

Operational Advantages

• Wide flexibility in actuation and switching functions enables one valve family to cover many machine types.
• High flow capacity versions permit powerful actuator control even in demanding applications.
• Robust construction and proven internal design deliver long service life and minimal maintenance.
• Modular mounting (individual or manifold) simplifies design and spares management.
• Global standard compatibility ensures ease of sourcing and replacement.

Applications: Manufacturing automation, packaging equipment, material handling plants, robotic cells, pneumatic logic and control cabinets, and general machine installations.
