Piston Rod Cylinders

Festo Piston Rod Cylinders

Festo piston rod cylinders are the most widely used type of pneumatic actuators, providing precise, powerful and reliable linear motion across a wide variety of automation tasks. They are built on standardized designs with extensive configuration flexibility, allowing machine builders to select the ideal stroke length, bore size, mounting style and cushioning type.

These cylinders are designed for durability, high repeatability, and long service life, making them suitable for virtually all industrial sectors, from packaging to automotive automation.

⭐ Important: Piston rod cylinders deliver high force output, broad configurability, and robust mechanical durability, making them the standard choice for most pneumatic linear movements.

Design & Functionality

• Piston rod cylinders operate via a piston driven by compressed air inside a cylinder barrel, transmitting force directly through an extending piston rod.
• Available in single-acting and double-acting versions, they provide strong thrust and retraction forces suitable for pushing, pulling, stopping and positioning applications.
• Festo offers a wide range of variants, including:

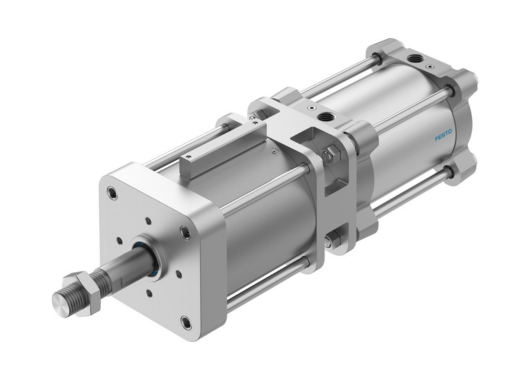

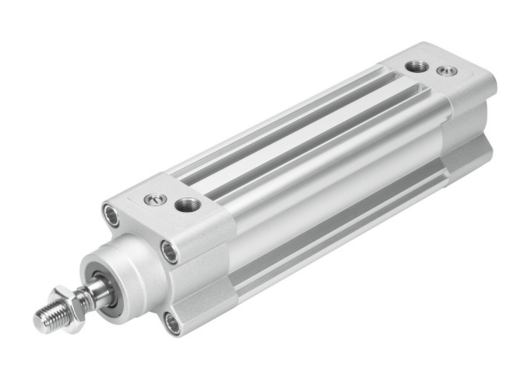

  • Standard cylinders (ISO-compliant)

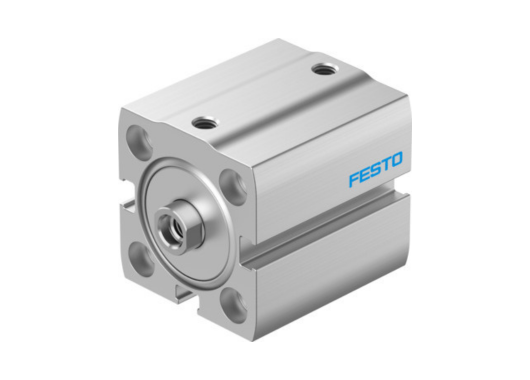

  • Compact cylinders

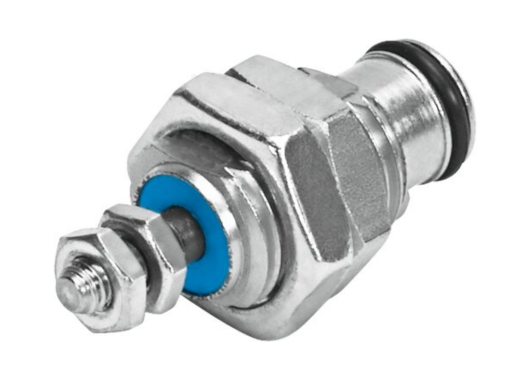

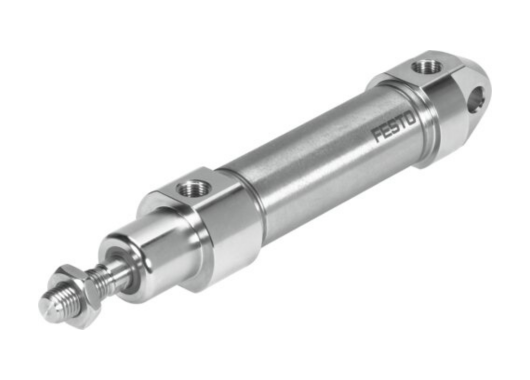

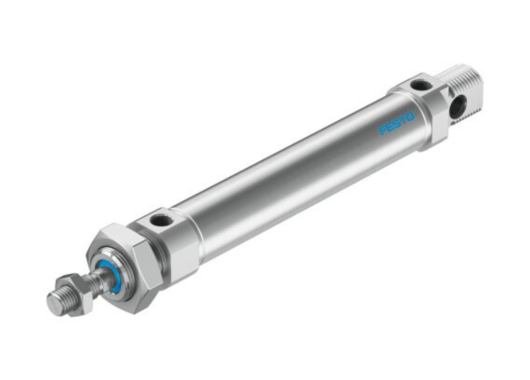

  • Short-stroke and round cylinders
  • Cylinders with self-adjusting cushioning
  • Corrosion-resistant and hygienic-design versions
• The cylinders are engineered for smooth operation, low friction, and reduced wear, enabling fast cycle rates in automated systems.

⭐ Important: The availability of ISO-standard and compact variants ensures complete compatibility with global machinery designs.

Total Crossed Beams

(Applied to the functional coverage of cylinder types)

• Full performance range covered through multiple cylinder families.
• Ensures full operational capability regardless of mounting location, orientation or stroke requirement.
• Designed to maintain stable force output and repeatability across the entire stroke length.

Beam Pitch Options

(Translated as: bore sizes, strokes, build variants)

• Wide bore size availability (commonly from 8 mm up to 100 mm+ depending on model).
• Stroke lengths ranging from short compact strokes to very long travel configurations.
• Optional choices include:
  • Magnetic piston for position sensing
  • Self-adjusting (PPS) or adjustable cushioning
  • Special materials for high-temperature or harsh environments
• This allows the cylinders to be optimized for high speed, high force, compact installation, or precise control depending on the application.

⭐ Important: The broad selection of bore sizes and strokes ensures optimal force and motion control for nearly any automation requirement.

Intrinsic Synchronism

• Internal piston and rod assembly ensures synchronised linear motion with minimal play.
• Optional guides or external alignment accessories maintain parallel motion when high lateral loads are present.
• Ensures consistent straight-line operation, supporting accurate positioning and machine repeatability.

Operational Advantages

• High force generation for pushing, lifting or clamping operations.
• Repeatable, smooth motion with long cycle life.
• Wide variety of mounting accessories available for any installation orientation.
• Low maintenance due to high-quality sealing and cushioning systems.
• Applications: Handling automation, packaging machines, clamping systems, robotics, pick-and-place units, process automation.
