Clamping Cylinders

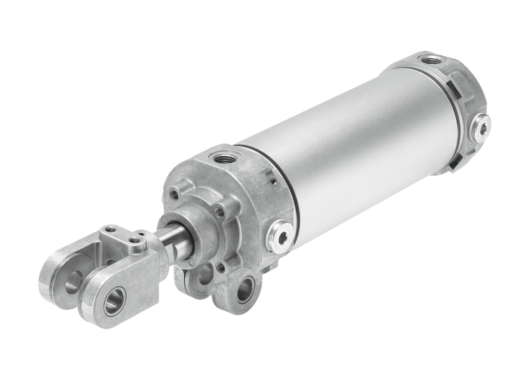

Festo Clamping Cylinders

Festo Clamping Cylinders are engineered for applications requiring secure mechanical holding, precise positioning, and high clamping reliability. They are widely used in industrial automation, material handling, machining fixtures, packaging systems, and assembly stations where components must be held firmly in place during processing.

These cylinders are available in various designs—such as swing clamps, block clamps, clamping grippers, and guided clamping units—allowing users to select the best configuration for their load, orientation, stroke, and clamping direction.

⭐ Important: Festo clamping cylinders ensure stable, high-force clamping, even under vibration, heavy loads, or rapid machine cycles—making them essential for safe and repeatable positioning.

Design & Functionality

• Clamping cylinders use pneumatic force to lock a workpiece or component securely in place using mechanical arms, jaws, or guided rods.
• Depending on the model, they offer linear clamping, swing/turn clamping, or guided clamping functions.
• High-strength components ensure durability, even in heavy-duty industrial environments.
• Optional self-locking mechanisms guarantee holding force even in the event of air pressure loss.
• Many models include integrated guides to maintain precise alignment during clamping, ensuring consistent repeatability.

⭐ Important: Models with self-locking clamps maintain holding power without continuous air supply, improving safety and energy efficiency.

Total Crossed Beams

(Concept applied as full clamping coverage and uniform force distribution)

• The clamping mechanism engages evenly across the working surface.
• Guided units ensure parallel, stable, uniform clamping motion.
• This results in consistent, repeatable clamping force, essential for precision operations such as machining or assembly.

Beam Pitch Options

(Interpreted as different clamping types, forces, strokes, and configurations)

• Available in a variety of clamping styles:

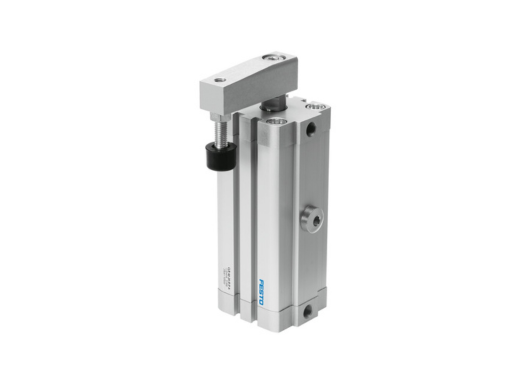

  • Swing clamps (90° or 180° rotation)
  • Linear clamps
  • Guided clamps

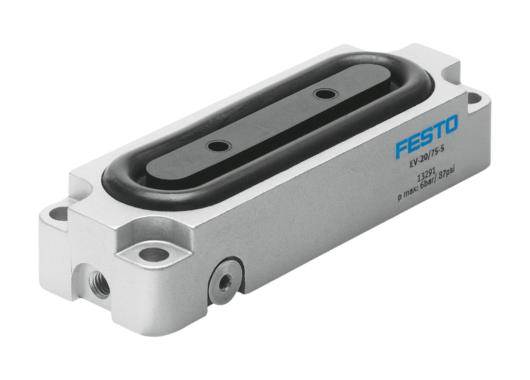

  • Block clamps
• Force ranges vary according to bore diameter and design—from light-duty clamping to heavy industrial holding.
• Stroke lengths vary to match specific workpiece dimensions and movement requirements.
• Additional options include:
  • Sensors for end-position recognition
  • Reinforced guiding for high side-load situations
  • Compact bodies for space-limited designs

⭐ Important: This wide selection allows clamping cylinders to be customized for precision workholding, machining fixtures, robotic gripping, or high-force industrial clamping.

Intrinsic Synchronism

• Internal guides and mechanical linkages ensure clamping arms move smoothly and symmetrically.
• The synchronized movement prevents misalignment and ensures the workpiece is clamped evenly.
• This leads to high repeatability, reduced wear, and dependable long-term operation.

Operational Advantages

• High clamping force suitable for industrial holding and locking tasks
• Reliable repeatability, even in high-vibration environments
• Compact, robust construction
• Optional self-locking, enhancing safety
• Easy mounting & integration with machine frames and fixtures
• Applications: Machining fixtures, assembly stations, workpiece holding, jigs, conveyors, packaging, robotic gripping and positioning modules.
