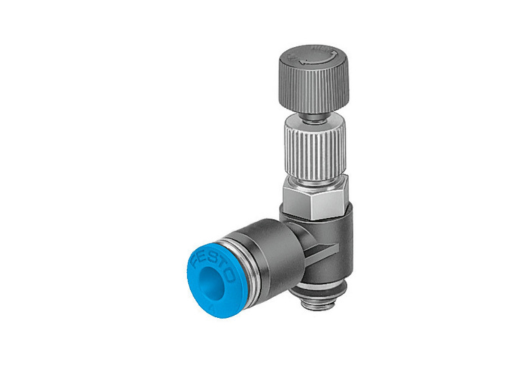

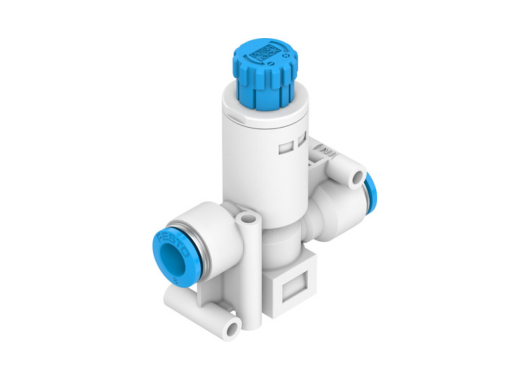

Pressure Control Fittings

Festo Pressure Control Fittings

Festo pressure control fittings provide a dependable solution for accurate and stable air pressure management in pneumatic systems. Designed to maintain optimal operating conditions, these fittings prevent pressure fluctuations, safeguard sensitive components, and ensure consistent machine performance.

Built with high-quality materials and engineered to Festo’s industrial standards, they deliver long service life, reliable sealing, and precise control in both low- and high-pressure environments. With multiple configuration options, they integrate seamlessly into automation, handling, packaging, and general pneumatic circuits.

⭐ Important: Pressure control fittings ensure stable airflow, protect equipment from overpressure, and optimize overall system efficiency, making them essential in modern pneumatic automation.

Design & Functionality

Pressure control fittings operate by regulating upstream compressed air to a stable outlet pressure level. Depending on the variant, they may incorporate pressure-reducing mechanisms, flow restriction elements, or adjustable throttling features.

Festo provides a comprehensive range of pressure control components, including:
• Pressure-reducing fittings
• Throttle and throttle-check fittings
• Flow control fittings
• One-way flow restrictors
• Precision mini regulators
• Integrated pressure-stabilizing connectors

These fittings ensure smooth, controlled airflow with minimal leakage and dependable long-term performance.

⭐ Important: Their integrated, compact design allows them to fit directly into tubing and valve ports, reducing installation space and simplifying circuit design.

Total Crossed Beams

(Applied to stability, pressure control range & functional coverage)

Wide coverage of pressure management requirements through multiple fitting families designed for varied flow and load conditions.

Ensures full operational capability across:
• Different pressure levels
• Variable flow demands
• Upstream and downstream applications

Engineered to maintain stable pressure even under fluctuating supply conditions, guaranteeing reliable pneumatic performance.

Beam Pitch Options

(Translated as: pressure ranges, flow variants, connection types, adjustment options)

Festo pressure control fittings are available in a broad selection of variants, including:

Connection Types:
• Push-in fittings
• Threaded fittings (e.g., G, R, NPT depending on model)
• Inline compact regulator fittings
• Integrated valve-fitting hybrids

Adjustable Features:
• Manually adjustable throttling screws
• Lockable pressure adjustment knobs
• Fixed-flow orifice options
• Meter-in or meter-out control modes

Pressure Ranges:
• Low-pressure variants for sensitive actuators
• Standard industrial pressures (up to ~10 bar depending on variant)
• High-precision control versions for fine regulation

This flexibility ensures perfect alignment with application requirements, whether the goal is energy-efficient operation, precise motion control, or protecting components from overpressure.

⭐ Important: The wide variety of connection types and control features ensures optimal pressure management for virtually every pneumatic setup.

Intrinsic Synchronism

Internal mechanisms ensure synchronized pressure reduction and stable outlet pressure even when the supply fluctuates.

Optional one-way flow or metering variants maintain consistent behavior during extension or retraction movements of pneumatic actuators.

Guarantees uniform machine behavior, supporting consistent cycle times and repeatable process performance.

Operational Advantages

• Accurate and stable pressure regulation
• Compact, space-saving integration directly into tubing or ports
• Reduced air consumption through optimized flow control
• Long service life due to robust internal sealing and precision machining
• Low maintenance design ideal for continuous industrial operation

Applications: General automation, packaging machinery, pick-and-place units, cushioning control, actuator speed regulation, process automation, conveyor systems.
