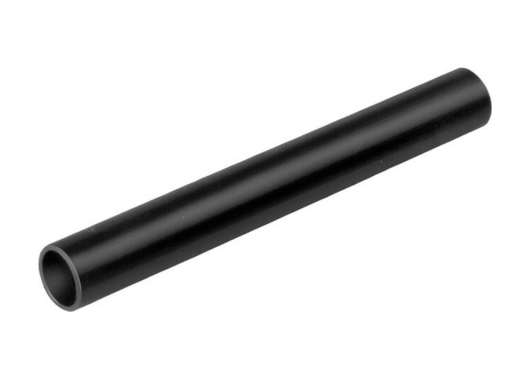

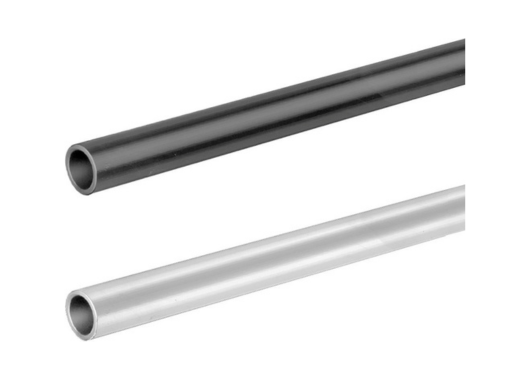

Pneumatic Piping Systems

Festo Pneumatic Piping Systems

Festo pneumatic piping systems are engineered to deliver efficient, consistent, and contamination-free compressed air distribution throughout industrial pneumatic networks. Built from high-quality materials and designed according to international standards, these systems ensure secure connections, superior airflow, and long-lasting durability across demanding industrial environments.

The product family includes plastic tubing, polyurethane hoses, metal tubes, fittings, threaded connectors, plugs, distributors, and flow-optimized piping elements, providing a complete solution for building or upgrading pneumatic circuits.

⭐ Important: Festo piping systems ensure leak-free, stable compressed-air delivery with high durability, consistent performance, and global compatibility — making them essential for any pneumatic automation setup.

Design & Functionality

Festo pneumatic piping systems consist of precisely engineered tubes and fittings that ensure optimal compressed-air transfer. Available in multiple tube materials (PU, PA, PE, PTFE, metal), they support applications from general automation to high-temperature or chemically demanding environments.

Fittings include:
• Push-in fittings
• Threaded and adaptor fittings
• Flow-optimized connectors
• Y, T, elbow, and cross distributors
• Quick-couplers, plugs, and shut-off elements

Designed to maintain maximum sealing integrity, minimum pressure loss, and high resistance to vibration, these piping systems ensure reliable operation in fast-cycling pneumatic equipment.

⭐ Important: Precision sealing and optimized flow paths ensure maximum air efficiency and reduced energy consumption.

Total Crossed Beams

(Applied to the full coverage of tubing & fitting types)

Comprehensive tubing and fitting options designed to cover every pneumatic distribution requirement.

Provides full compatibility across machines regardless of layout, routing complexity, tube length, or actuator positioning.

Ensures uniform airflow delivery and consistent pressure stability across the entire system.

Beam Pitch Options

(Translated as: tube sizes, materials, fittings variants)

A wide selection of diameters, wall thicknesses, materials, connectors, and thread types ensures precise system engineering for any application.

Available selections include:
• Tube diameters from Ø2 mm to Ø16 mm (varies by material)
• Tube materials such as polyurethane, polyamide, polyethylene, PTFE, and metal
• Fittings available in brass, stainless steel, polymer, and nickel-plated variants
• Thread types such as G, R, and metric
• Special products for high temperatures, aggressive media, or dynamic motion

This allows the piping system to be optimized for flexibility, pressure rating, chemical resistance, and installation constraints.

⭐ Important: Multiple tube materials and sizes enable tailored air distribution performance for every pneumatic environment.

Intrinsic Synchronism

The internal design of the tube-fittings interface ensures perfectly synchronized sealing between components.

Push-in fittings use precision collet systems that grip tubing uniformly without deformation, ensuring repeatable connections over multiple cycles.

This guarantees consistent airflow even under pressure fluctuations or vibration.

Operational Advantages

• Secure, vibration-resistant sealing
• Optimized internal flow for reduced pressure loss
• Wide range of tube materials for any environment
• Simple push-in and threaded connection assembly
• High flexibility for routing complex pneumatic lines
• Low maintenance due to durable sealing and connector design

Applications: Packaging machines, handling systems, factory automation, compressed-air supply networks, robotics, food-processing equipment, and general industrial machinery.
