Multi-pin Plug Distributors

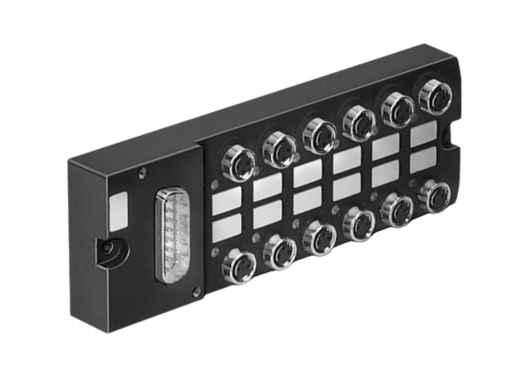

Festo Multi-pin Plug Distributors

Festo’s multi-pin plug distributors provide an elegant and efficient solution for routing multiple electrical connections in pneumatic control systems. They integrate solenoid valves, sensors and I/O modules into one plug-in unit — thus reducing wiring complexity, minimising installation time and improving system reliability.

These plug distributors are designed for industrial ruggedness, high connection density, and modular flexibility, making them an excellent choice for machine builders and system integrators in sectors such as automotive, packaging and material handling.

⭐ Important: Multi-pin plug distributors deliver high connection density, fast maintenance-friendly installation, and plug-and-play compatibility — making them a key component for modern pneumatic valve networks.

Design & Functionality

The multi-pin plug distributor acts as an interface between the control unit and a group of solenoid coils or sensors, distributing signal and power via one multi-pin connector instead of many individual cables. Available mounting styles include through-hole and H-rail mounting, and connection options support standard M8 (3-pin) or similar industrial plug types.

They allow quick disconnection and replacement of entire valve islands, simplify fault tracing and reduce downtime. The devices are built to resist industrial conditions — with sealed connectors, rugged housings and status-LED indicators (in certain variants) for operational feedback.

⭐ Important: The combination of compact multi-pin design and high reliability supports machine uptime and faster servicing.

Total Crossed Beams

(Applied to the functional coverage of distributor modules)

Festo’s plug distributor families cover full control-island connectivity, four to twelve I/O channels, and both valve and sensor circuits. This ensures complete coverage of standard valve terminal configurations and I/O requirements.

They maintain consistent electrical performance and signal integrity across varying ambient conditions and wiring lengths.

Beam Pitch Options

(Translated as: number of pins/channels, mounting variants, connector types)

There are multiple variants offering different channel counts (for example 8-channel or 12-channel), connector pin counts (e.g., M8 3-pin inputs), mounting types (through-hole or H-rail), and status indication features (LEDs).

These options allow selection of distributors optimized for:

• High channel count for large valve banks
• Simplified wiring and compact footprint
• Fast diagnostics via LED indication
• Easy integration with existing valve terminal systems

⭐ Important: The wide selection of channel, pin-type and mounting variants ensures optimal fit for any pneumatic installation scenario.

Intrinsic Synchronism

The internal connector layout and module construction ensure synchronised and reliable signal/power distribution to each channel. Optional features such as LEDs for readiness and status enhance visibility of the system’s condition.

This ensures consistent electrical performance and simplified diagnostics, supporting reliable machine control events.

Operational Advantages

• Reduced wiring complexity and installation time
• Increased machine uptime via modular plug-in replacement
• High density of channels in a compact unit
• Robust construction suited to industrial environments
• Plug-and-play compatibility with Festo valve and sensor networks

Applications: Automated machine controls, valve islands, handling systems, packaging lines, robotics, sensor networks.
