MS Series – Pressure Regulators

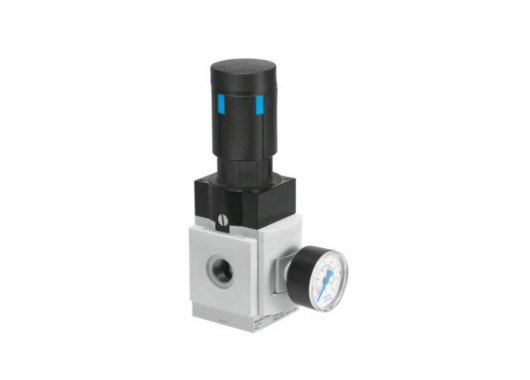

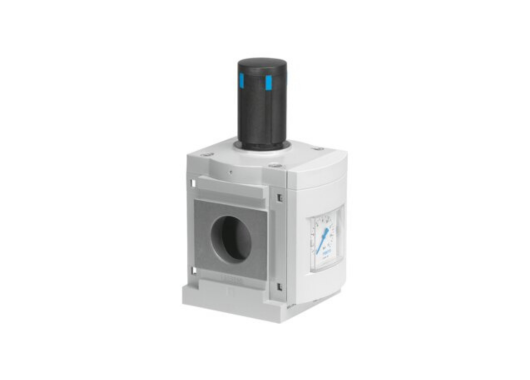

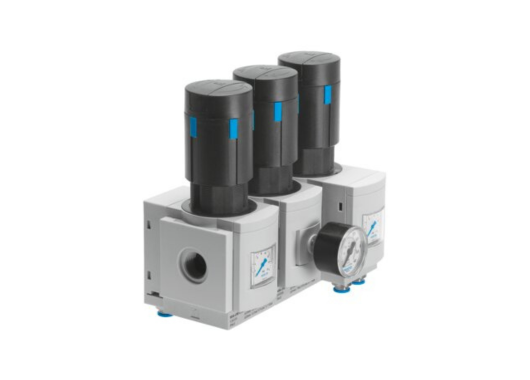

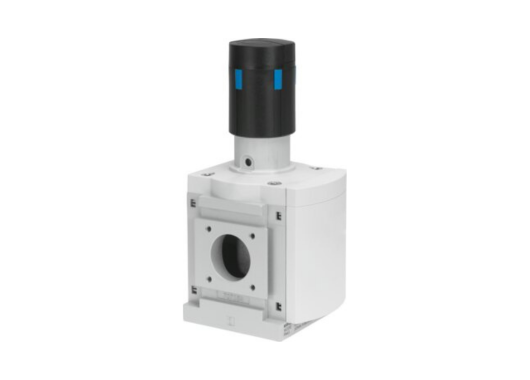

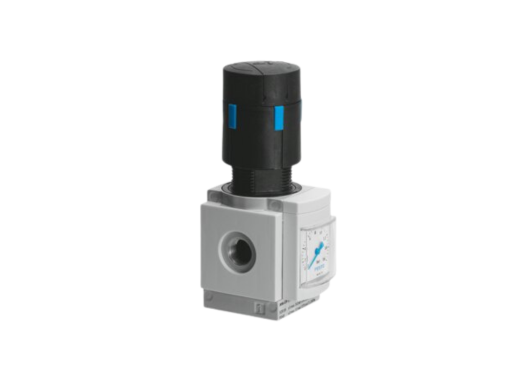

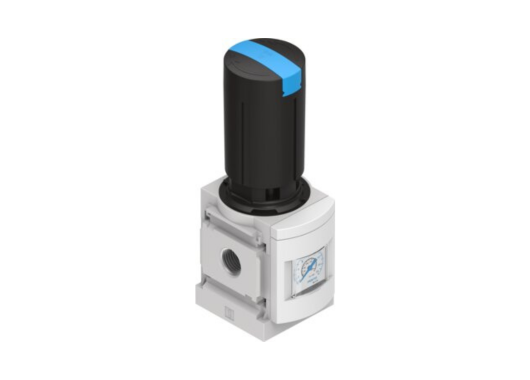

Festo MS Series – Pressure Regulators

The Festo MS Series pressure regulators are engineered to deliver highly stable and accurate pressure control for compressed-air systems used across all automation environments. Designed with modularity and ISO compatibility in mind, these regulators ensure reliable downstream air supply, protecting components and improving the efficiency and lifespan of pneumatic equipment.

Available in multiple sizes, flow capacities, and adjustment ranges, the MS Series fits seamlessly into air preparation assemblies and offers a wide selection of functional variants for precise control of outlet pressure.

⭐ Important: The MS Series provides exceptional pressure stability, wide configurability, and modular integration—making it the preferred solution for modern industrial air preparation systems.

Design & Functionality

MS Series regulators operate by reducing fluctuating upstream pressure into a stable, controlled outlet pressure. Their internal control diaphragm and precision spring assembly ensure accurate regulation across varying loads and flow demands.

Festo offers several types of MS regulators, including:
• Direct-operated pressure regulators
• Diaphragm regulators with relieving function
• Precision regulators for high-accuracy applications
• Modular units with gauge connection and lockable adjustment

The series is engineered for low hysteresis, quick pressure response, and high flow consistency, ensuring stable pneumatic performance even in dynamic automation environments.

⭐ Important: The MS modular design ensures compatibility with filters, lubricators, soft-start valves, and safety components—allowing easy configuration of complete air preparation systems.

Total Crossed Beams

(Applied to the functional coverage of regulator variants)

Comprehensive pressure regulation capabilities spanning standard, high-precision, relieving, and non-relieving options.
Ensures complete air preparation performance regardless of flow demand, pressure range, or downstream equipment sensitivity.
Designed to maintain stable output pressure under fluctuating inlet pressure and varying system loads.

Beam Pitch Options

(Translated as: pressure ranges, sizes, adjustment variants, construction choices)

Wide availability of regulator sizes, pressure adjustment ranges, and flow capacities to suit all automation and industrial requirements.

Selectable configuration options include:
• Outlet pressure ranges from low-pressure to standard industrial ranges
• Different MS body sizes (e.g., MS4, MS6, MS9)
• Lockable rotary knob or tamper-proof adjustment versions
• Relieving or non-relieving design
• Threaded or modular connection options
• Integrated pressure gauge or gauge port variants

These choices allow each MS regulator to be tailored for precision control, energy efficiency, high flow demand, or compact integration within machine layouts.

⭐ Important: Multiple pressure ranges and body sizes ensure optimal performance for both small precision equipment and large high-flow pneumatic systems.

Intrinsic Synchronism

Internal diaphragm and valve assemblies maintain synchronized pressure control, ensuring low overshoot and rapid stabilization.

Optional accessories such as pressure gauges, flow monitors, and mounting modules improve alignment and system integration across complete air preparation units.

Ensures consistent operating pressure, supporting high repeatability and overall machine performance.

Operational Advantages

• Excellent pressure stability even under fluctuating supply conditions
• Modular design for easy combination with other MS air preparation units
• High flow capacity suitable for demanding applications
• Easy-to-read adjustment, with optional locking features
• Long service life with robust construction and high-quality sealing elements

Applications: Automation machinery, assembly systems, packaging lines, robotics, pneumatic handling, compressed-air processing, and machine protection systems.
