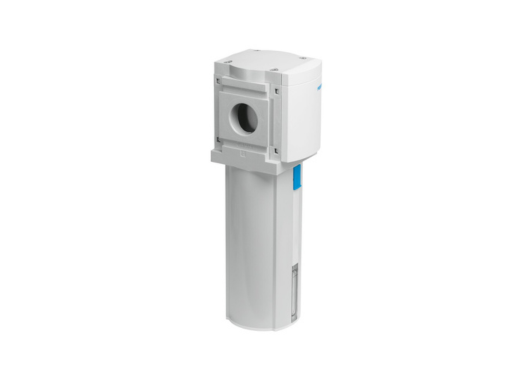

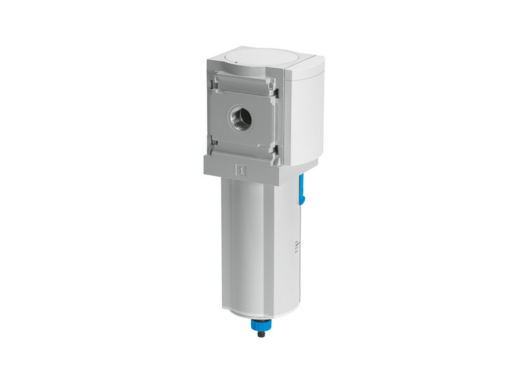

MS-Series Condensate Drains

Festo MS-Series Condensate Drains

Festo’s MS-Series condensate drains are engineered to provide automatic, efficient, and maintenance-reducing removal of moisture and contaminants from compressed-air preparation stages. These units are essential for ensuring consistent system reliability, protecting downstream equipment, and improving long-term pneumatic efficiency.

Built to integrate seamlessly into MS-Series air preparation modules, they maintain stable operation under varying loads, pressure conditions, and contamination levels.

⭐ Important: MS-Series drains ensure fully automated condensate removal, extended service life of pneumatic components, and optimal air quality in demanding industrial environments.

Design & Functionality

MS-Series condensate drains work by automatically discharging accumulated water and oil from filters, bowls, and air preparation assemblies. Depending on the selected variant, the drain may operate via automatic float control, time-controlled solenoid actuation, or fully electronic sensor-based draining.

Festo offers several drain types, including:
• Automatic mechanical float drains
• Semi-automatic manual/automatic drains
• Electronic level-sensing condensate drains
• High-capacity drains for heavy moisture loads

These units are engineered for continuous reliability, clog-resistant flow paths, and energy-efficient operation within compressed-air systems.

⭐ Important: The MS-Series supports multiple drain technologies — from simple float mechanisms to fully electronic sensors — ensuring the right solution for any airflow and moisture load.

Total Crossed Beams

(Applied to functional coverage across MS-Series drain variants)

Complete moisture-management performance across all MS-Series modules.
Ensures effective drainage regardless of air quality, pressure fluctuations, or environmental conditions.
Designed to maintain operational consistency even in high-moisture, high-cycle pneumatic systems.

Beam Pitch Options

(Translated as: drainage capacity, operating modes, and construction variants)

Wide selection of drain types for different system requirements:

• Mechanical float drains for automatic, no-power operation
• Electrically controlled drains with timed or sensor-based discharge
• High-capacity drains for heavy-duty industrial systems
• Compact drains suitable for smaller MS filter units

Additional configurable options include:
• Drain discharge sizes and bowl capacity
• Plastic or metal bowl materials
• Manual override functions
• Pressure range adjustments

⭐ Important: Multiple drainage technologies and bowl options allow precise matching to system moisture load, operating pressure, and application environment.

Intrinsic Synchronism

Internal float or sensor mechanisms ensure synchronized discharge only when condensate reaches threshold levels.
Electronic variants provide optimized draining cycles with minimal air loss.
Ensures consistent internal operation with dependable condensate removal throughout system runtime.

Operational Advantages

• Fully automatic removal of moisture and contaminants
• Protects valves, cylinders, tools, and downstream equipment
• Reduces maintenance and extends service life
• Minimizes pressure loss and prevents water carryover
• Available in mechanical, semi-automatic, and electronic versions
• Designed for seamless integration into MS-Series compressed-air modules

Applications: Manufacturing automation, process air treatment, packaging systems, general industrial machinery, machining centers, painting and coating systems, and any environment requiring clean, dry compressed air.
