MS basic series

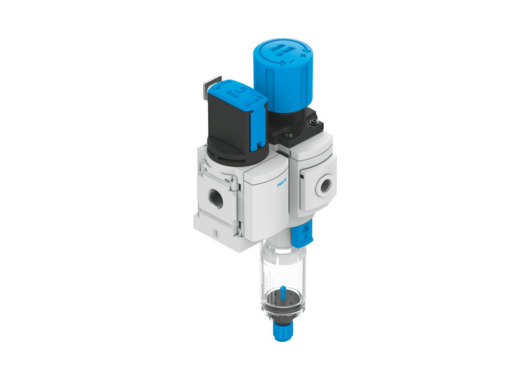

Festo MS basic series

Festo’s MS basic series units are engineered to provide high-quality compressed-air preparation in a straightforward, robust package. Built on a modular concept with standardized interfaces and flexible configuration, these units support reliable pneumatic performance across a wide variety of machinery and system types.

These units combine key functions—filtration, pressure regulation, and optional lubrication—into compact service modules that simplify installation and reduce footprint. They are designed for durable operation, low maintenance, and efficient control of air quality, pressure and flow in industrial compressed-air networks.

⭐ Important: MS basic series units deliver optimized air cleanliness, stable pressure control and modular flexibility — ensuring your pneumatic system runs smoothly and efficiently with minimal downtime.

Design & Functionality

These service units operate by controlling three key aspects of compressed air:

• Filtration: Remove particles, oil and water droplets to protect downstream pneumatic components.
• Regulation: Maintain a stable, settable pressure to ensure consistent actuator performance and efficient energy use.
• Lubrication (optional): Add controlled oil mist to extend the life of pneumatic valves and cylinders when required.

Festo provides MS basic modules in multiple sizes (e.g., MS4, MS6) and configurations suited for a range of flow-rates and system sizes.

⭐ Important: Modular construction and standardised mounting interfaces make it easy to select, install and extend the MS basic series units with minimal engineering effort.

Total Crossed Beams

(Applied to the functional coverage of unit families)

The MS basic series covers the core compressed-air preparation needs of industrial pneumatic systems—from basic filtration/regulator combinations to more complex service units. This ensures full functional capability regardless of system scale or machine type.

Beam Pitch Options

(Translated as: module sizes, flow rates, accessory options)

Available in various sizes (e.g., MS4 for lower flows, MS6 for higher flows) and offering options such as:

• Filter grades (e.g., 5 µm or 40 µm) for different contamination levels.
• Pressure regulation up to typical ranges (e.g., up to 10 bar) to match pneumatic system requirements.
• Optional manual shut-off or exhaust valves, branching modules for multiple outlets.

⭐ Important: The broad selection of module sizes, filter options and accessory attachments ensures optimal conditioning of compressed air to suit a wide variety of pneumatic automation tasks.

Intrinsic Synchronism

The internal design of the MS basic series units ensures coordinated operation of filtration, regulation and lubrication stages. Standardised interfaces and mounting ensure integration into larger pneumatic networks or service stations with minimal alignment or adaptation required.

This synchronised function supports consistent air quality and pressure stability, which ultimately enhances machine repeatability and reduces pneumatic component wear.

Operational Advantages

• Improved pneumatic reliability through high-quality air preparation
• Reduced maintenance and downtime due to robust design and easy access to service elements
• Enhanced energy efficiency as regulated pressure prevents over-pressurisation and optimises flow
• Simplified system design thanks to modular units that integrate seamlessly into pipelines or machine frames
• Cost-effective operation with long service intervals and standardised components

Applications: General automation, compressed-air networks, manufacturing equipment, handling systems, packaging machines, robotics and process-industry installations.
