Integration Heads

Integration Heads

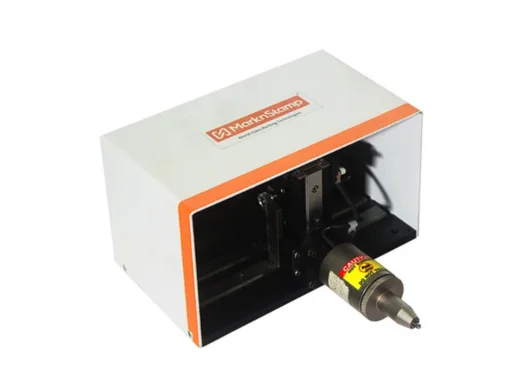

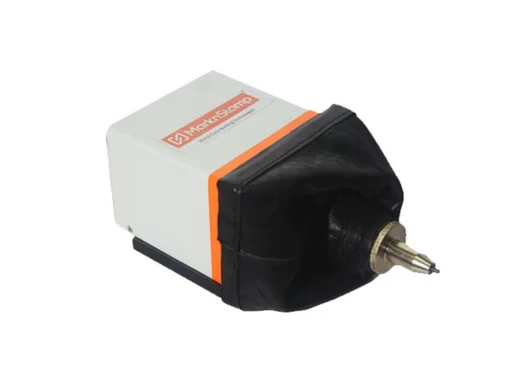

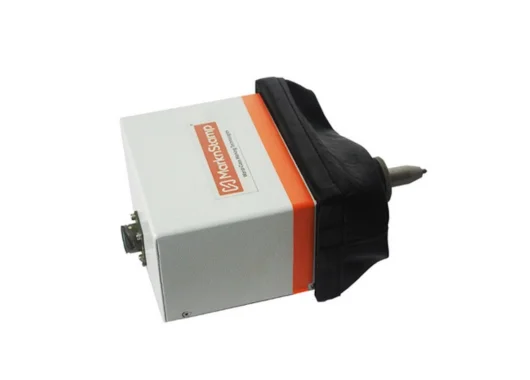

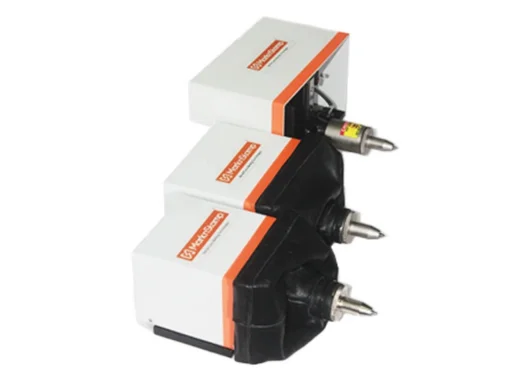

Integration Heads are purpose-built marking modules designed for seamless integration into automated manufacturing cells, conveyors, robotic arms, and custom machinery. These compact, rugged and precisely engineered units allow manufacturers to embed direct marking functionality into their equipment without sacrificing speed, accuracy, or repeatability.

Developed for continuous industrial use, Integration Heads ensure stable marking quality even under demanding conditions. Their modular construction allows machine builders to select the appropriate marking technology, lensing options, communication interfaces, and mechanical configurations required for advanced traceability and identification workflows.

⭐ Important: Integration Heads deliver high accuracy, consistent marking quality, and full modular integration — making them ideal for automated manufacturing environments requiring reliable inline marking.

Design & Functionality

Integration Heads enable high-performance marking by combining optical, mechanical, and electronic subsystems into a compact, purpose-engineered module. They are designed to be mounted directly onto machinery frames, linear slides, or robotic systems.

These heads are compatible with multiple marking technologies, allowing seamless integration into workflows involving:
• Laser marking
• Dot peen marking
• Inkjet marking
• High-speed traceability codes
• Serial, batch and variable data printing

Their construction ensures stable optical alignment, minimal vibration transfer, and precise focal positioning, supporting long-term operation with minimal maintenance.

⭐ Important: Robust mechanical construction and stable optical alignment guarantee consistent marking precision across long production cycles.

Total Crossed Beams

(Applied to functional coverage of marking capabilities)

Integration Heads support a full spectrum of marking requirements—from micro-engraved identification codes to large-format text.

They are engineered to maintain complete operational coverage regardless of the marking technology used, ensuring:
• Stable positioning
• High accuracy on curved, flat, or textured surfaces
• Repeatable marking performance across the entire field

Designed to deliver consistent results even at high production speeds.

Beam Pitch Options

(Translated as: lensing options, marking field sizes, mounting variations)

Integration Heads offer a wide range of configurable options, including:
• Variable working distances
• Alternate marking field sizes
• Swappable optics (for laser models)
• Different stylus sizes (for dot-peen models)
• Multiple nozzle and cartridge configurations (for inkjet models)

Additional customization options include:
• Adjustable focal settings
• Mounting plates and brackets
• Built-in or remote controller electronics
• Multiple communication or trigger interfaces

These options allow Integration Heads to be optimized for high-speed marking, deep marking, fine-resolution marking, or high-contrast codes.

⭐ Important: The broad selection of marking fields, optics, and mechanical configurations ensures ideal performance for any industrial marking application.

Intrinsic Synchronism

The internal architecture is engineered to ensure synchronized marking output with minimal deviation.
Key features include:
• Precision mechanical alignment
• Stable thermal compensation
• High-reliability actuators or beam sources
• Accurate timing for multi-axis or conveyor-synchronized applications

This guarantees uniform marking quality, even when integrated into fast-moving automated processes.

Operational Advantages

• High repeatability and consistency for traceability and identification
• Compact design for easy integration into tight spaces
• Long service life with minimal maintenance needs
• Options for high-speed production, deep marking, or fine-detail output
• Durable construction suitable for continuous industrial operation

Applications: Automotive components, electronics, metal fabrication, FMCG packaging, medical devices, serialization, part identification, batch coding, robotic marking systems.
