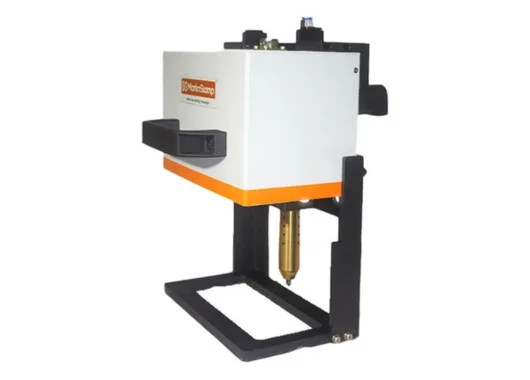

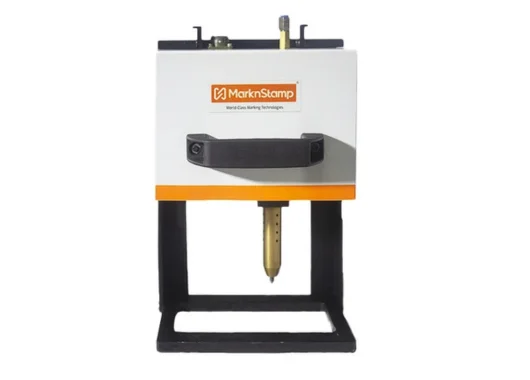

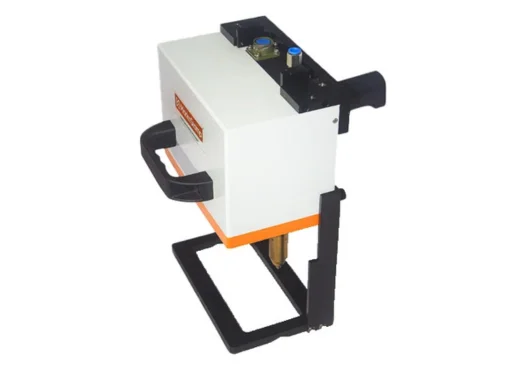

Deep Marking Machine

Deep Marking Machine

The Deep Marking Machine is designed to provide deep, durable, and highly readable marks on a wide range of metal components. Built with industrial-grade construction and engineered for high-impact marking, this system is ideal for applications requiring high penetration depth such as automotive components, engine parts, chassis plates, heavy machinery parts, and hardened metals.

The machine combines a powerful pneumatic marking mechanism with a precision-guided CNC motion system, ensuring uniform depth and accurate character formation across the full marking area of 150mm × 50mm.

⭐ Important: Engineered specifically for deep engraving, this machine delivers strong, consistent impressions even on hard or uneven surfaces—making it ideal for heavy-duty industrial marking.

Design & Functionality

The Deep Marking Machine operates using a pneumatically actuated stylus that impacts the material surface at high frequency. This creates deep, permanent dot-peen engravings used for serial numbers, batch codes, barcodes, logos, and industrial traceability markings.

The integrated 2-axis CNC controller with a 7″ touchscreen enables intuitive programming, layout design, marking path generation, and on-machine editing. The system supports alphanumeric marks, logos, patterns, and variable data.

Key design elements include:
• High-depth pneumatic stylus (LP-25)
• Rigid marking head for stable impact control
• Large marking window for flexible part layouts
• Customisable component fixtures for irregular or small parts

⭐ Important: The combination of a high-force pneumatic stylus and CNC precision results in exceptionally deep, uniform and permanent markings.

Total Crossed Beams

(Applied to functional coverage and marking capabilities)

The machine covers a complete range of marking requirements—deep marking, component identification, branding, and serialisation—across metal components of varying hardness.

Ensures stable marking performance regardless of material thickness, surface uniformity, or marking layout.

Designed to maintain consistent depth and quality across the entire marking stroke cycle.

Beam Pitch Options

(Translated as: marking area, stylus configuration, controller features)

The machine offers multiple marking options and flexible mechanical parameters to support varied industrial needs.

Available settings & variants include:
• Marking Area: 150mm × 50mm
• Pneumatic version with high-depth valves
• Standard Stylus: LP-25
• 2-Axis CNC controller with 7″ touchscreen interface
• Customisable fixtures for different component shapes

Optional configurations allow optimization for:
• High-depth steel marking
• High-speed marking cycles
• Variable-size parts
• Precision marking for logos and codes

⭐ Important: Adjustable marking parameters and stylus options enable optimal marking quality across different metals and hardness levels.

Intrinsic Synchronism

Precise alignment of the marking stylus with the CNC-controlled axes ensures accurate positional marking with minimal deviation.

The internal guide system maintains stable marking depth even under high impact loads.

Supports consistent marking repeatability—ideal for batch production and mass-identification tasks.

Operational Advantages

• Deep and permanent engraving suitable for industrial traceability
• High-impact pneumatic stylus delivers strong marking penetration
• Touchscreen CNC interface allows fast program creation and editing
• Stable and rigid design supports continuous heavy-duty use
• Lightweight marking head (approx. 4.5–4.8 kg) for easy mounting
• Customizable fixtures for secure part holding
• Suitable for a wide range of metals including steel, cast iron, and hardened alloys

Applications

• Automotive engine parts & chassis plates
• Industrial metal nameplates
• Tooling and die components
• Heavy machinery parts
• Frame numbers and serial identification
• Batch traceability and logo engraving
• Manufacturing and workshop engraving tasks
