Integrated Electromechanical Actuators

Festo Integrated Electromechanical Actuators

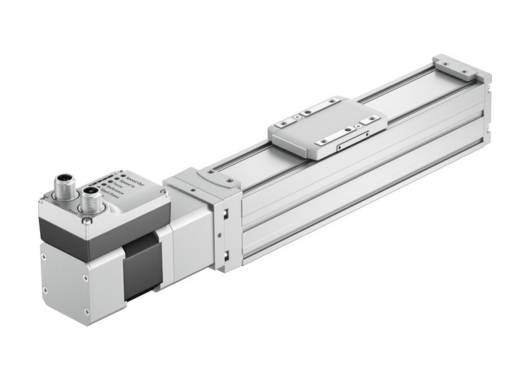

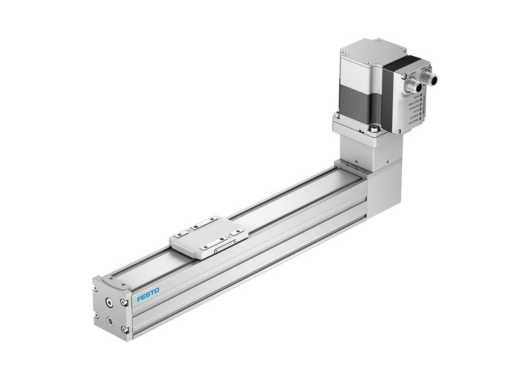

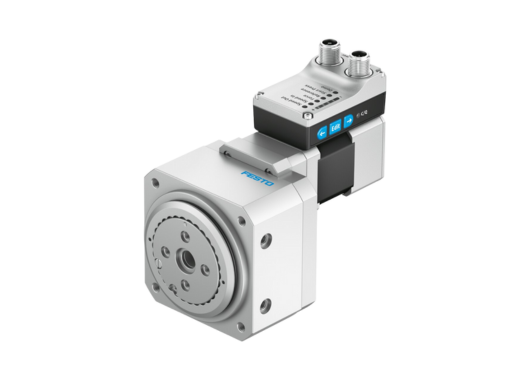

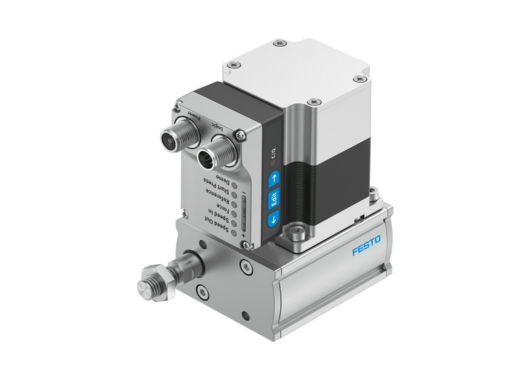

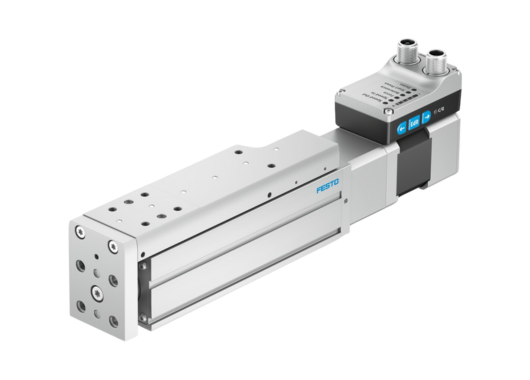

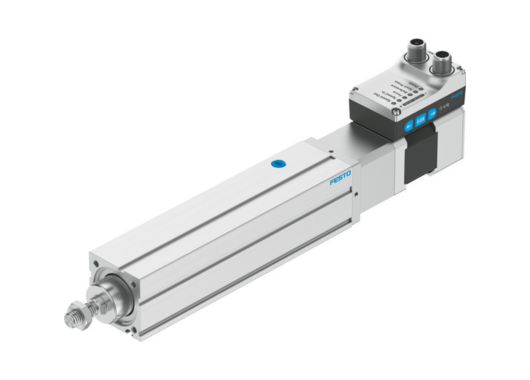

Festo’s Integrated Electromechanical Actuators are all-in-one motion units designed to deliver precise linear movement while significantly reducing installation complexity. By combining an electric motor, mechanical drivetrain, guide system, and position feedback components into a single compact module, these actuators provide high accuracy, repeatable motion, and reliable performance in industrial automation environments.

⭐ Important: These actuators remove the need for separately sourcing motors, couplings, guides, or external alignment — drastically reducing setup time and improving system reliability.

Design & Functionality

Integrated electromechanical actuators are engineered as complete motion systems that merge multiple components into one ready-to-install solution.

Key design features include:

• A fully integrated motor and spindle/ball-screw drive for precise linear positioning.
• Optional internal guiding systems for applications requiring load support and moment handling.
• Integrated position sensors or encoders for exact feedback and motion control.
• Compact housing that offers high rigidity, low vibration, and long service life.

⭐ Important: The integrated design ensures absolute alignment between drive, guide, and motor, resulting in optimal mechanical efficiency and long-lasting accuracy.

Total Crossed Beams (Application Coverage)

(Adapted to the actuator context)

• Full-stroke positioning capability across the entire motion range.
• Continuous encoder-based monitoring ensures accurate detection at any point along the stroke.
• Supports high-precision applications such as pick-and-place, robotic handling, assembly, and metrology.

Beam Pitch Options (Drive & Load Variants)

Integrated electromechanical actuators are available in multiple configurations:

• Ball-screw, tooth-belt, or spindle drive variants
• Different load capacities and travel lengths
• Multiple motor output and speed combinations
• Guided or non-guided formats depending on application needs

⭐ Important: This selection enables optimal customization for speed, force, stroke length, and precision requirements.

Intrinsic Synchronism

• Motor, screw drive, feedback unit and guide are pre-matched and factory-aligned.
• No manual calibration required after installation.
• Ensures highly repeatable motion cycles with consistent performance.

Operational Advantages

Integrated electromechanical actuators offer several performance benefits:

High Switching Frequency & Dynamic Performance

• Capable of fast acceleration and deceleration.
• Excellent responsiveness for high-speed automated systems.

Easy Configuration

• Simple wiring and commissioning thanks to integrated components.
• Quick setup with servo controllers or motion controllers.

Applications

• Assembly and pick-and-place automation
• Packaging systems
• Robotics and handling
• Electronics manufacturing
• Measurement and quality control systems

⭐ Important: The all-in-one architecture enhances system uptime and reduces maintenance costs — a key advantage in high-productivity automation environments.
