Hydraulic Dampers

Festo Hydraulic Dampers

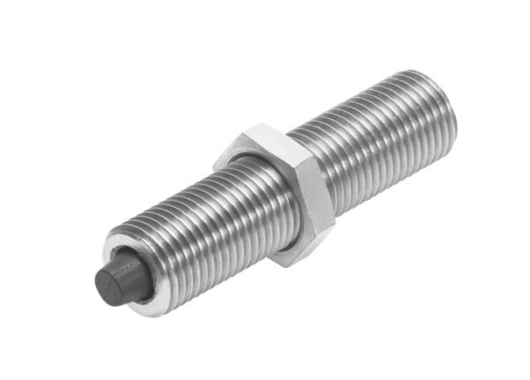

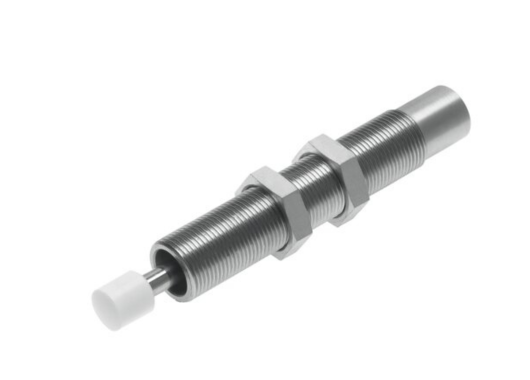

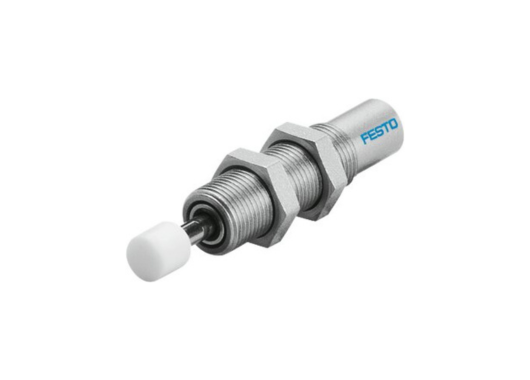

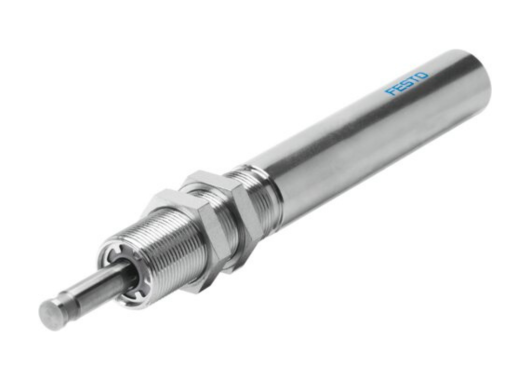

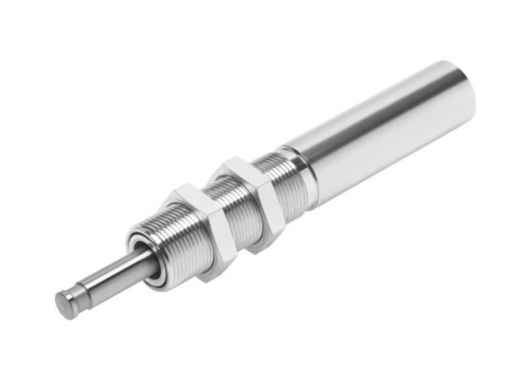

Festo Hydraulic Dampers are precision-engineered units used to absorb shock, reduce vibration, and control the motion of moving machine elements. They ensure consistent deceleration of loads, increase machine lifetime, and protect mechanical structures from impact-related wear. These dampers are widely used in handling systems, conveyors, robotic mechanisms, and high-speed automation lines.

Their design allows for smooth, controlled deceleration, minimizing noise and vibration while preventing damage to critical machine components. Available in compact and heavy-duty models, they offer both self-adjusting and manually adjustable damping characteristics.

⭐ Important: Hydraulic dampers significantly reduce mechanical stress, extend equipment lifetime, and improve automation speed and reliability.

Design & Functionality

• Festo hydraulic dampers convert kinetic energy into thermal energy using internal hydraulic resistance.
• They provide precise, controlled damping regardless of the load or speed of impact.
• Available variants include:
  • Self-adjusting dampers that adapt automatically to changing impact conditions
  • Adjustable dampers for fine-tuned damping force
• The robust steel body construction ensures long service life, even under continuous high-cycle use.
• Compact-size dampers are designed for lightweight movements, while large sizes handle high-energy impacts.

⭐ Important: Self-adjusting models enable maintenance-free operation with no need for manual tuning.

Total Crossed Beams

(Applied conceptually as full-range damping consistency)

• The damper offers full-stroke energy absorption with consistent resistance throughout the damping range.
• Internal piston and hydraulic chambers maintain uniform motion control across the entire stroke.
• This ensures stable, repeatable deceleration regardless of direction or mounting position.

Beam Pitch Options

(Translated as damping variants, energy classes, sizes)

• Offered in multiple damping capacities—from small kinetic loads to high-impact industrial masses.
• Adjustable versions allow fine control of damping force via an external adjustment screw.
• Threaded body sizes vary (e.g., M8, M10, M12, M14, M25 and others depending on model).
• Stroke lengths vary depending on the damper energy class and application.
• Optional accessories include stop collars, mounting brackets, and protective caps to suit different machine layouts.

⭐ Important: Multiple energy-absorption classes provide optimal damping selection for both small automation tasks and high-energy industrial applications.

Intrinsic Synchronism

• Internal oil flow channels and piston orifices are engineered for synchronized deceleration.
• This ensures smooth motion from the beginning of the stroke to the end, without sudden stops.
• Guarantees maximum repeatability, essential for automated equipment operating at high speed.

Operational Advantages

• Protects machinery from shock loads and vibration
• Increases cycle speed by eliminating uncontrolled stops
• Reduces noise and improves operator safety
• Long lifespan due to robust hydraulic design
• Maintenance-free in self-adjusting models
• Applications: Robotics, conveyors, linear actuators, packaging machinery, pick-and-place units, gantry systems, high-speed automation.
