Festo Electromechanical Cylinders

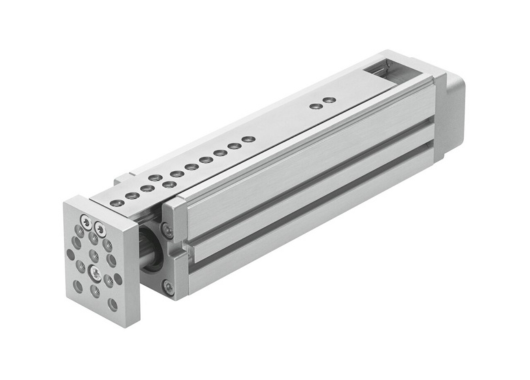

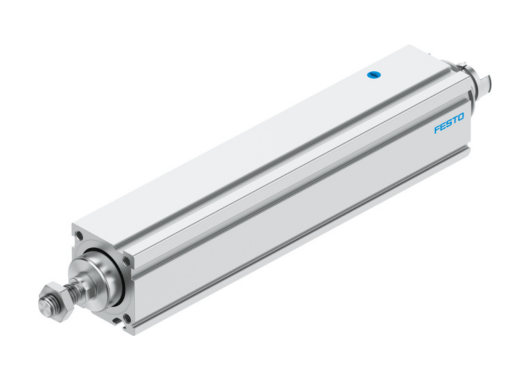

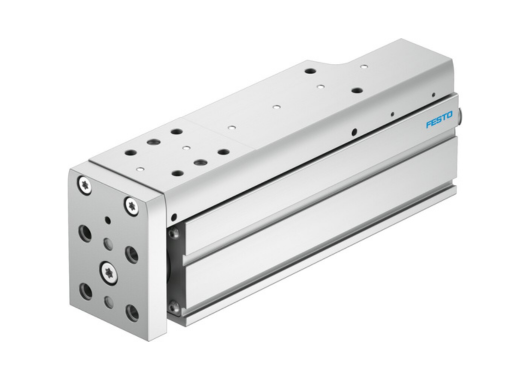

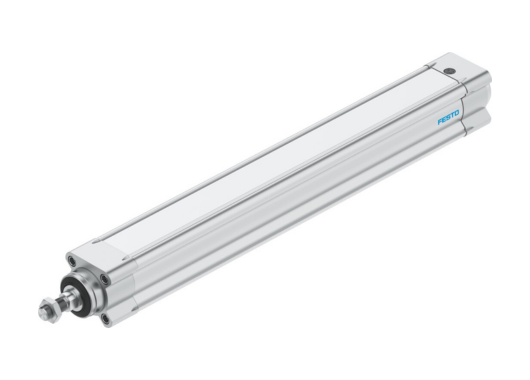

Festo Electromechanical Cylinders are advanced linear actuators engineered for applications requiring highly precise, controlled movement. They integrate mechanical strength with servo or stepper motor technology to deliver repeatable positioning, high dynamics, and efficient force transmission.

These cylinders replace traditional pneumatics in scenarios that demand fully adjustable speed, force, and position control. They are suited for industries such as packaging, electronics, assembly automation, and intralogistics.

⭐ Important: Electromechanical cylinders provide servo-grade precision, programmable motion profiles, and higher energy efficiency compared to pneumatic systems.

Design & Functionality

Electromechanical cylinders are designed around a robust guide system combined with a drive element—typically a ball screw, lead screw, or toothed belt. They convert rotary motor motion into smooth linear travel, offering excellent stiffness and accuracy.

Total Crossed Beams (Adapted to motion control coverage)

• Full-stroke controlled movement ensures position feedback from start to end.
• Enables continuous monitoring and accurate positioning throughout the travel.

Beam Pitch Options (Adapted as stroke and mechanical variations)

• Available in multiple formats:
  • Ball-screw driven (high precision, high force)
  • Lead-screw driven (low noise, economical)
  • Toothed-belt driven (high speed, long stroke)
• Stroke lengths available up to several meters depending on series.
• Variants optimized for:
  • High-precision operations
  • High speed and long travel
  • Compact mounting

⭐ Important: The wide selection of drive types and stroke options ensures perfect compatibility with different application demands.

Intrinsic Synchronism

• Direct mechanical coupling between motor and actuator guarantees synchronous movement.
• Servo motor integration offers:
  • Real-time closed-loop control
  • Repeatable positioning
  • Smooth acceleration and deceleration
• No need for external linkages—reducing wear and installation complexity.

Operational Advantages

High Switching Frequency (High Dynamic Response)

• Capable of fast acceleration and deceleration cycles.
• Ideal for pick-and-place, sorting lines, robotic cells, and rapid positioning tasks.

Easy Configuration (Teach-In and Motor Compatibility)

• Supports multiple motor and controller options.
• Simple parameter setup for position, speed, and force.
• Easily integrated into Industry-4.0-ready systems.

Applications

• Precision assembly and electronics manufacturing
• Packaging machinery (filling, sealing, cutting)
• Material transfer and gantry systems
• Servo-pneumatic replacements where accuracy and programmability are essential

⭐ Important: Electromechanical cylinders enable fully programmable motion, making them ideal for replacing fixed pneumatic stroke systems.
