Cover Plates

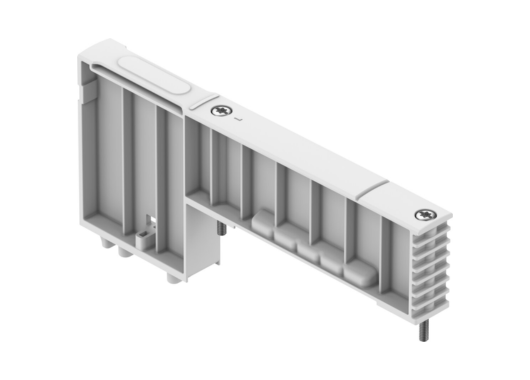

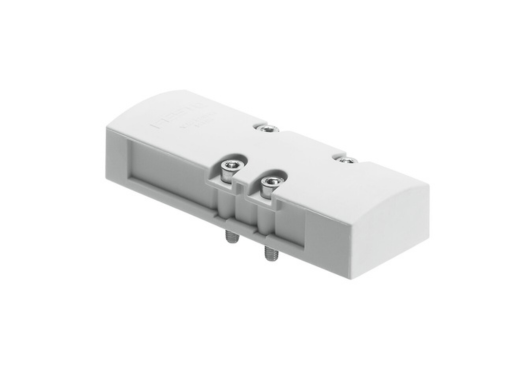

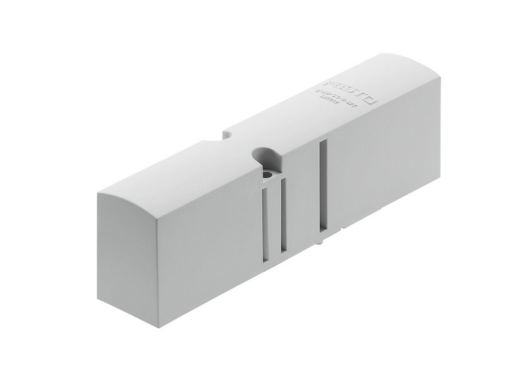

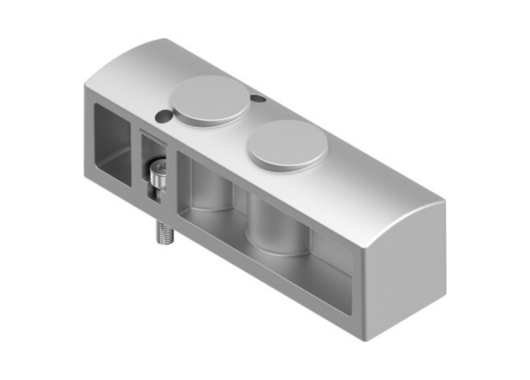

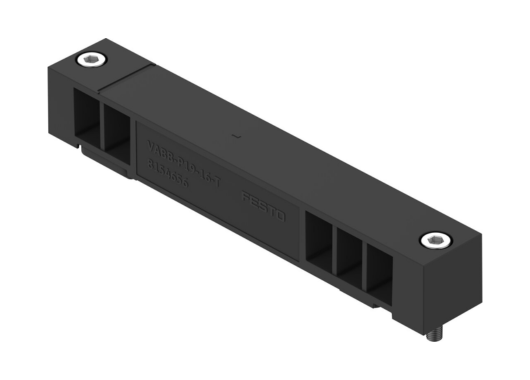

Festo Cover Plates

Festo cover plates are essential accessories used to securely seal unused valve stations on manifolds and valve terminals. They ensure that air channels remain closed, leakage is prevented, and the system maintains optimal operating pressure. Built with robust industrial materials and engineered to meet Festo’s high-quality standards, these plates support both system safety and modular flexibility.

These cover plates enable machine builders to design scalable pneumatic configurations, allowing unused stations to be reserved for future system expansion or protected when not in use.

⭐ Important: Cover plates maintain airtight sealing, prevent contamination, and support modular system design—making them vital components for any manifold-based pneumatic setup.

Design & Functionality

Cover plates function as protective sealing elements for unused valve slots in pneumatic valve terminals. When installed, they block internal flow paths, ensuring no air is lost and no external contaminants enter the manifold system.

They are precision-machined for proper alignment and include secure fastening holes for mounting consistency. Installation is simple, requiring only standard manifold hardware.

Common configurations include:
• Cover plates for modular valve terminals
• ISO-compatible manifold cover plates
• Plates with integrated seals for airtight closure
• Heavy-duty variants for demanding environments

These plates are engineered to achieve tight sealing, stable seating, and long-term reliability under continuous industrial operation.

⭐ Important: High-precision sealing surfaces ensure leak-free operation even at high pressure levels.

Total Crossed Beams

(Applied to coverage across valve terminal families)

Cover plates are available for a wide range of Festo valve terminal series, ensuring full compatibility with modular and ISO-standard configurations.

Supports all common manifold sizes and station counts.

Ensures complete system integrity regardless of the number of active or unused valve positions.

Beam Pitch Options

(Translated as: size variants, mounting patterns, sealing types)

A broad selection of cover plate specifications is available, including:
• Standard and compact manifold widths
• Plates for different port diameters
• Sealing materials optimized for service life
• Variants with integrated O-rings or gasket-type seals

Optional characteristics include:
• Lightweight aluminium construction
• Stainless-steel options for harsh or hygienic environments
• High-temperature or chemical-resistant sealing materials

This flexibility allows the cover plate to be selected based on pressure rating, environmental exposure, or mounting pattern requirements.

⭐ Important: Wide compatibility ensures seamless integration with existing or future pneumatic terminal layouts.

Intrinsic Synchronism

The cover plate design aligns with the internal architecture of Festo valve terminals for perfect sealing alignment.

Uniform thickness, mounting hole placement, and sealing geometry ensure consistent positioning across manifold stations.

Maintains system synchronisation by preventing pressure imbalance caused by unsealed valve openings.

Operational Advantages

• Prevents leakage and maintains stable operating pressure
• Protects unused stations from dust, oil, or moisture
• Supports modular system expansion and future upgrades
• Reduces maintenance by blocking contamination ingress
• Simple installation with standard mounting screws

Applications: Pneumatic manifolds, valve terminals, modular automation systems, packaging machines, assembly automation, and general industrial machinery.
