Connecting Cables

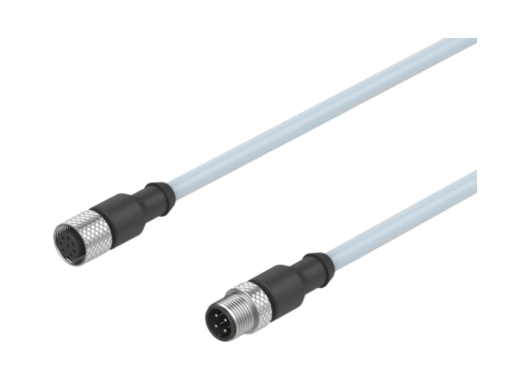

Festo Connecting Cables

Festo connecting cables are designed to meet the demanding requirements of modern industrial automation, offering a high degree of configurability and durable performance in harsh environments. The modular nature of the range allows machine builders and system integrators to select the optimal cable for their application — varying connector styles, pin‐counts, lengths, cable characteristics and certifications.

These cables support standard connector interfaces (for example M12x1 A-coded, G7/8, M8) and are built with rugged materials (such as TPE-U (PUR) sheaths) to ensure long service life and resistance to oil, abrasion and flex-motion.

⭐ Important: The extensive modular options and standardized connector types ensure compatibility, fast installation and simplified maintenance across automation systems.

Design & Functionality

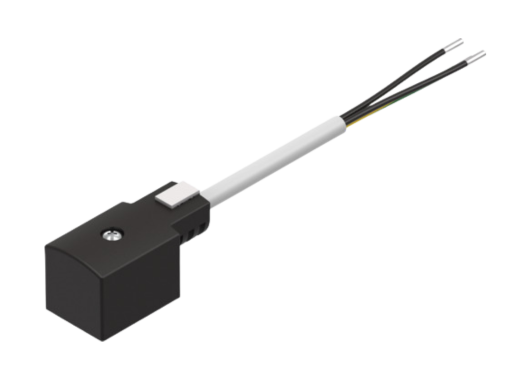

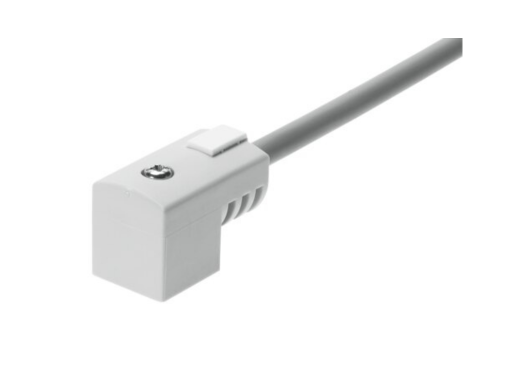

The cables transfer signals and/or power between field devices (sensors, actuators) and controllers or terminal blocks. They come in versions pre-assembled with plugs, open cable ends, or combined plug/socket configurations. The robust coupling mechanisms (screw-type locks, sealed housing) ensure secure connection even in vibration or challenging conditions.

Total Crossed Beams

(Applied to the functional coverage of cable families)
The cable range covers all major connection tasks in automation: simple sensor wiring, power feed, Ethernet/data lines, hybrid signal/power cables and energy‐chain applications. This ensures full operational capability regardless of connector style, cable length or mechanical load.

Beam Pitch Options

(Translated as: cable variants, connector types, special features)
A wide range of options is available, including:

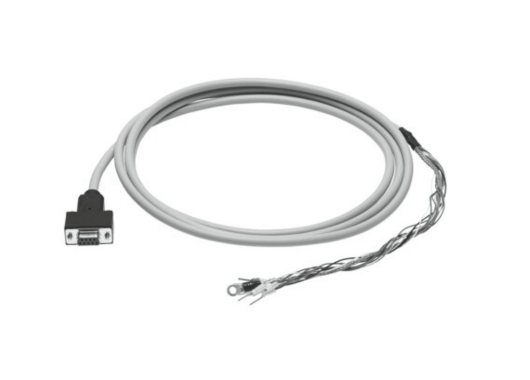

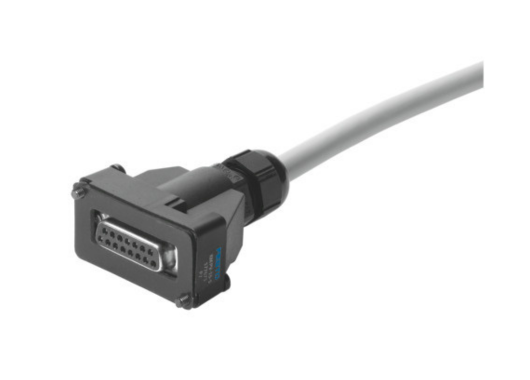

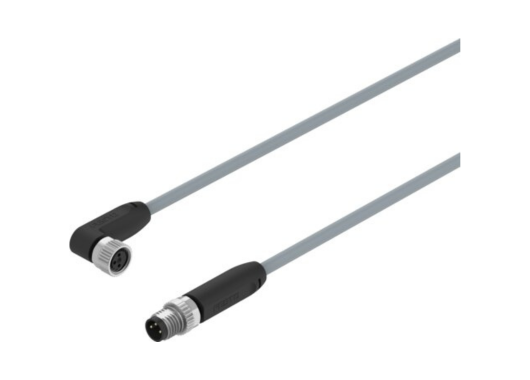

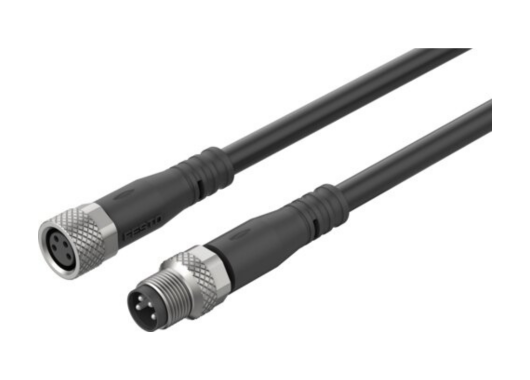

• Connector types: M8, M12, G7/8, RJ45, Sub-D, USB 2.0.
• Pin-counts: 3-pin, 4-pin, 5-pin, 8-pin, 9-pin, 25-pin.

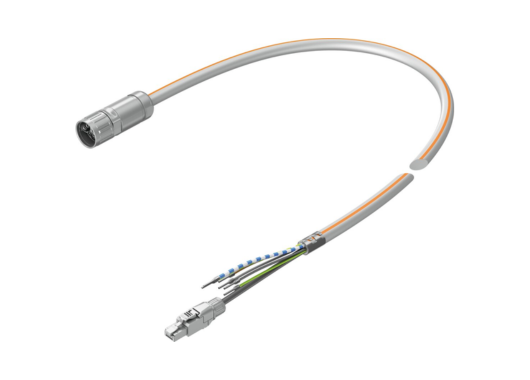

• Cable characteristics: Standard, energy-chain rated, hybrid signal/power, Ethernet-compatible.
• Lengths: from small harnesses up to 50 m depending on type.

⭐ Important: The breadth of connector formats and cable ratings means you can tailor the cable exactly to your automation design — from compact sensor links to heavy-duty actuator feeds.

Intrinsic Synchronism

Internally, the cables maintain signal integrity, correct pin allocation and secure mechanical coupling — even when used in motion, vibration or harsh ambient conditions. The use of standardized lock mechanisms and sealed housings ensures that connections remain stable over time and reduce the risk of wiring faults.

Operational Advantages

• Easy integration thanks to standardized connectors and modular construction
• High durability: oil- and abrasion-resistant sheaths, energy-chain suitability
• Wide variety of lengths and configurations reduces need for custom wiring
• Secure connections: screw-type locks, sealed coupling, standardized coding
• Lower maintenance and installation time due to plug-and-play compatibility

Applications: Sensor/actuator wiring, machine control cabinets, valve manifolds, network modules, robotics, packaging machines, energy-chain systems.
