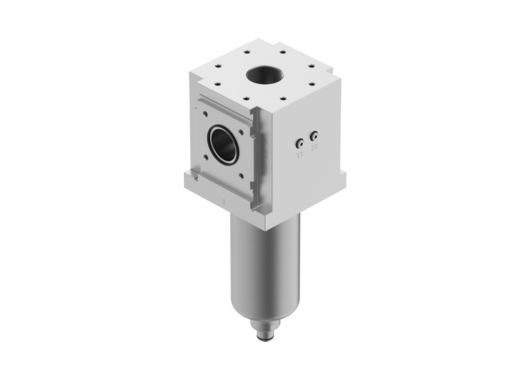

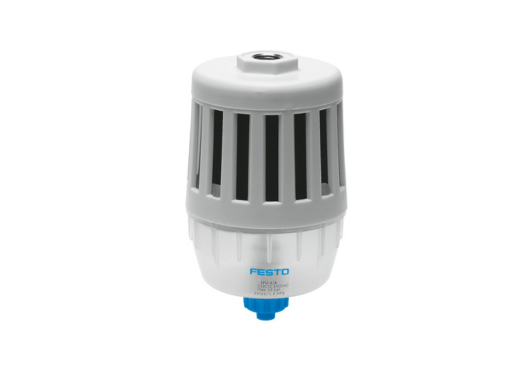

Compressed-Air Filters – Individual Devices

Festo Compressed-Air Filters – Individual Devices

Festo compressed-air filters are precision-engineered units designed to deliver high-quality filtration for pneumatic systems. These filters remove contaminants such as moisture, dust, debris, and oil aerosols from compressed air, ensuring optimal air purity for actuators, valves, and sensitive automation equipment.

Available as individual devices, these filters can be used as standalone filtration units or integrated into multi-stage air-preparation systems. Their standardized construction, long-life filter elements, and stable pressure characteristics make them suitable for demanding industrial applications.

⭐ Important: Festo compressed-air filters significantly improve system reliability, prevent premature wear, and maintain consistent air purity across automation processes.

Design & Functionality

Festo individual compressed-air filters operate by channeling air through precision-engineered filter elements that capture impurities while maintaining stable flow characteristics. Depending on the selected filter type, they can remove:
• Water and condensate
• Solid particulates
• Oil aerosols
• Fine contaminants and micro-particles (with fine/coalescing elements)

Variants are available with:
• Different filtration grades (5 μm, 40 μm, 0.01 μm, etc.)
• Manual, semi-automatic, or automatic condensate drains
• High-flow housings for demanding systems
• Transparent bowls or metal bowls with sight-glass options

The filters are engineered to maintain low pressure drop, ensuring high air quality without compromising system efficiency.

⭐ Important: Multiple filtration grades allow precise adaptation to any air-quality requirement — from general-purpose filtration to high-purity coalescing filtration.

Total Crossed Beams

(Applied to the filtration coverage of the product family)

Full filtration performance is achieved through multiple filter types offering different particle-retention levels.

Ensures comprehensive air-quality control regardless of contamination levels, humidity conditions, or downstream equipment sensitivity.

Designed to maintain constant output quality throughout the filter element's service life.

Beam Pitch Options

(Translated as: filtration grades, drain types, housing versions)

Wide selection of filtration grades and device configurations to meet application-specific air purity requirements.

Available options include:
• 40 μm general-purpose filters
• 5 μm fine particulate filters
• 1 μm fine aerosol removal
• 0.01 μm coalescing filters for high-purity air
• Activated-carbon stages for odor removal

Additional configuration choices:
• Manual drain, semi-automatic drain, automatic float drain
• Polycarbonate bowl with protective guard
• Metal bowl versions for harsh environments
• High-flow filter bodies for large air-consumption systems

These options allow the filter to be optimized for air purity, flow capacity, system compactness, or environmental conditions depending on the application.

⭐ Important: The wide range of filtration grades and drain options ensures optimal air quality for everything from general automation to sensitive pneumatic control.

Intrinsic Synchronism

Internal flow paths and filter geometry are engineered to provide uniform airflow across the filter media, preventing pressure fluctuations.

Optional differential-pressure indicators or sight-glass levels help maintain synchronized monitoring of filter condition and condensate levels.

Ensures consistent filtration performance, supporting stable downstream operation and extended component life.

Operational Advantages

• Highly efficient filtration improves equipment reliability
• Long-life filter elements reduce maintenance intervals
• Available for both low-flow and high-flow pneumatic circuits
• Stable pressure characteristics minimize energy losses
• Compatible with modular air preparation systems and individual setups

Applications: General automation, process equipment, pick-and-place units, robotics, packaging lines, machine tools, and any system requiring clean, reliable compressed air.
