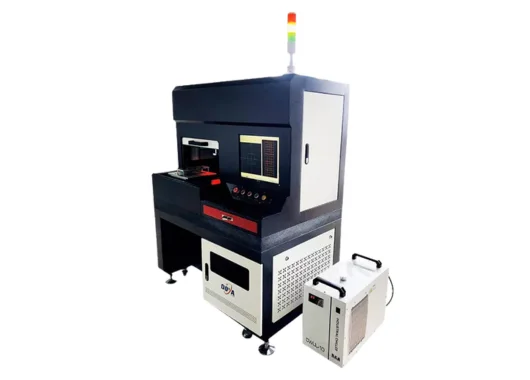

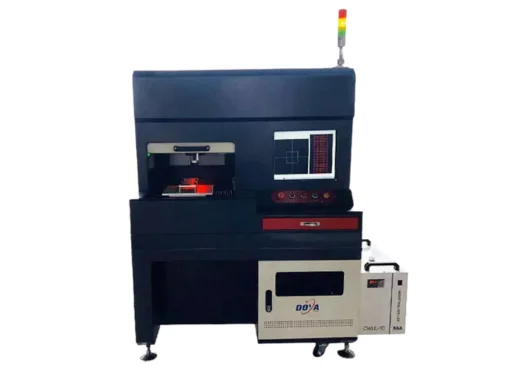

Doya UV Laser Cutting System For FPC/PCB

UV Laser Cutting System For FPC/PCB 💡

The DUCD-12 UV Laser Cutting System is a high-precision solution designed to meet the demanding processing requirements of the modern electronics industry. Using advanced UV (355 nm) or Green Laser (532 nm) cold-processing technology, it delivers exceptional cutting quality with minimal thermal impact—making it ideal for sensitive materials like FPC and PCB.

High Precision & Automatic Control

The DUCD-12 is engineered for extreme accuracy. Its integrated CCD vision system and professional software enable automatic positioning for consistent, repeatable results. Equipped with XYZ-axis motion driven by a high-precision linear motor on a stable marble platform, the system ensures low vibration, minimal thermal interference, and highly stable cutting performance.

Cold Processing Advantage

The UV and Green laser sources use a “cold processing” method in which high-energy photons directly break molecular bonds. This significantly reduces heat-affected zones, preventing burning, deformation, or damage to delicate materials. The result is cleaner cut edges, higher yield, and superior overall quality for micro-electronic applications.

Automation & SMT Line Integration

For high-volume production, the DUCD-12 can be configured with a conveyor belt system for direct integration into SMT (Surface Mount Technology) lines. This enables seamless automated operation, improving workflow efficiency and boosting throughput in mass-production environments.

Primary Applications

• Cutting and segmentation of FPC (Flexible PCB) and PCB (Printed Circuit Board)
• Precision dicing and scribing of thin materials such as ITO film
• Processing of delicate or rigid materials including glass and ceramics
