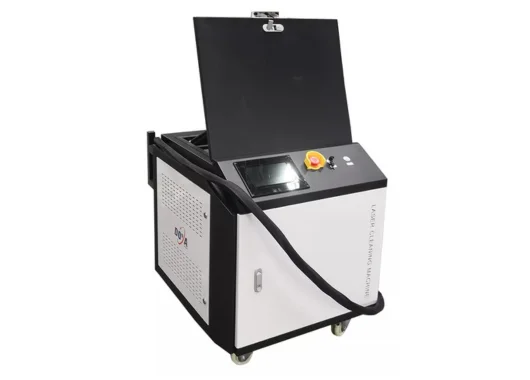

Doya Handheld Pulse Fiber Laser Cleaning Machine For Mould Rust Removal

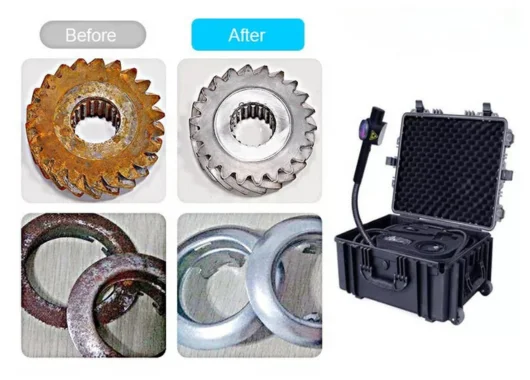

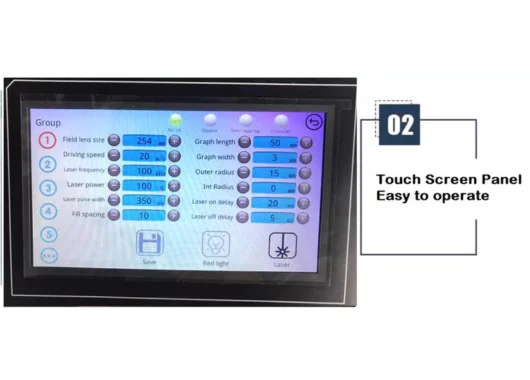

The DOYA Handheld Pulse Fiber Laser Cleaning Machine is a new generation, high-tech solution for surface cleaning, specifically targeting the removal of mould rust, resin, oil, dirt, coatings, and paint. It offers high cleanliness and high efficiency using a non-contact method that requires no chemical reagents, media, or water, making it green and environmentally friendly. It is easy to operate, features auto-focus, and can be precisely positioned for delicate work like cleaning brittle material surfaces. Power options are available from 100W up to 1000W.

Power:

100W

200W

500W

1000W

Category: Laser welding and Cutting
Brand: DOYA

Parameter Type	Item	50W	100W	200W	500W	1000W
Optical Parameters	Average Output Power	≥50 W	≥100 W	≥200 W	≥500 W	≥1000 W
	Laser Wavelength	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm
	Pulse Width (ns)	2–500	2–500	2–500	30–500	30–500
	Frequency Range (KHz)	1–4000	1–4000	1–4000	10–400	10–400
	Power Adjustment	10%–100%	10%–100%	10%–100%	10%–100%	10%–100%
	Cooling Type	Air Cooling	Air Cooling	Air Cooling	Water Cooling	Water Cooling
Mechanical Parameters	Fiber Length (m)	3	5	5	10	10

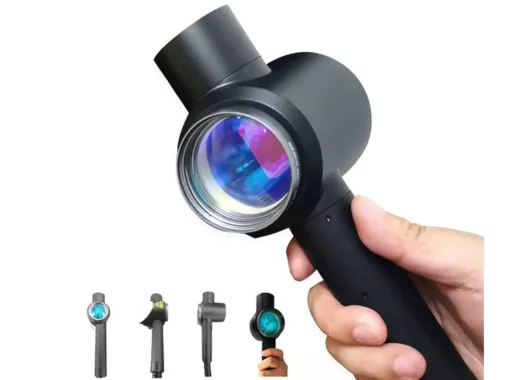

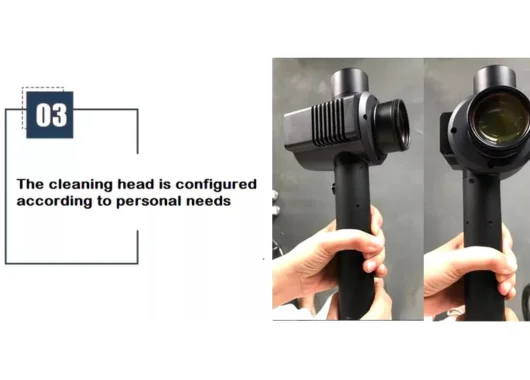

	Weight of Cleaning Head (kg)	1	1	1	1	1
	Scan Width (mm)	10–110	10–110	10–110	10–110	10–110
	Focal Length (mm)	160/254/330	160/254/330	160/254/330	160/254/330	160/254/330

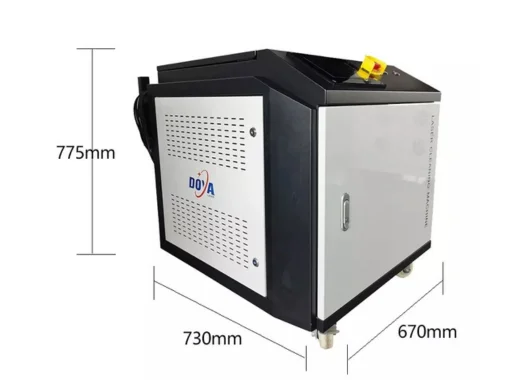

	Size (cm)	67×77×73	67×77×73	67×77×73	111×70×112	111×70×112
	Weight (kg)	90	90	90	240	240
Working Condition	Voltage	Single phase 230V/110V ±10%, 50/60 Hz AC	Same	Same	Same	Same
	Total Power Consumption	≤200 W	≤500 W	≤800 W	≤2000 W	≤4000 W
	Working Temperature	0°C – 40°C	0°C – 40°C	0°C – 40°C	0°C – 40°C	0°C – 40°C
	Environment Humidity	≤80%	≤80%	≤80%	≤80%	≤80%

Parameter Type

Item

50W

100W

200W

500W

1000W

Optical Parameters

Average Output Power

≥50 W

≥100 W

≥200 W

≥500 W

≥1000 W

Laser Wavelength

1064 nm

Pulse Width (ns)

2–500

30–500

Frequency Range (KHz)

1–4000

10–400

Power Adjustment

10%–100%

Cooling Type

Air Cooling

Water Cooling

Mechanical Parameters

Fiber Length (m)

Weight of Cleaning Head (kg)

Scan Width (mm)

10–110

Focal Length (mm)

160/254/330

Size (cm)

67×77×73

111×70×112

Weight (kg)

240

Working Condition

Voltage

Single phase 230V/110V ±10%, 50/60 Hz AC

Same

Total Power Consumption

≤200 W

≤500 W

≤800 W

≤2000 W

≤4000 W

Working Temperature

0°C – 40°C

Environment Humidity

≤80%
