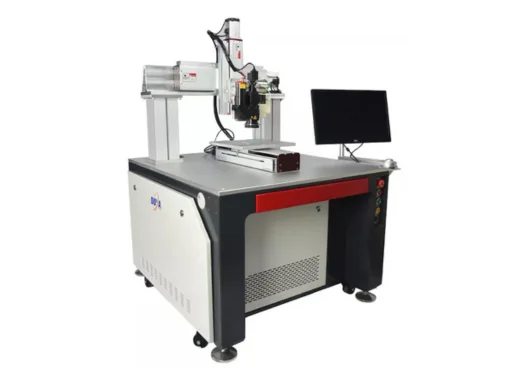

DOYA Laser Soldering Machine (DSD-60)

DOYA Laser Soldering Machine (DSD-60)

The DSD-60 Constant Temperature Laser Soldering Equipment represents a major advancement in automated and precision soldering technology, engineered to meet the stringent requirements of modern electronics manufacturing. With its intelligent temperature-control mechanism and fully automated operation, it delivers unmatched accuracy, consistency, and protection for sensitive components.

Precision Temperature Control

At the heart of the DSD-60 is its constant temperature control system. The machine continuously monitors the real-time temperature of the soldering area and adjusts laser output power using a PID control algorithm.
This ensures:

• Stable soldering temperatures
• No overheating or thermal shock
• Safe processing of sensitive electronic parts

High Stability & Production Yield

• Designed for high welding stability
• Ensures significantly higher yield rates in mass-production environments
• Ideal for delicate tasks requiring consistent, repeatable precision

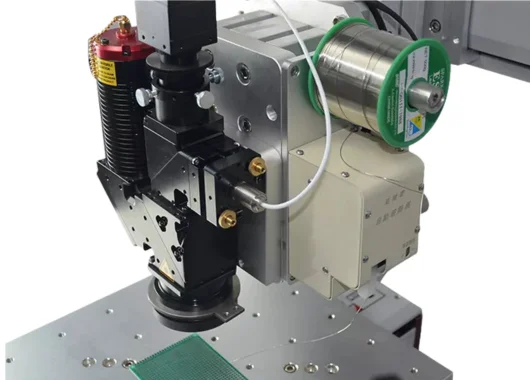

Coaxial Alignment for Superior Accuracy

The machine features fully coaxial alignment of:

• Laser beam
• Temperature control sensors
• Vision system
• Red-light indicator

This alignment enhances precision and ensures accurate solder joint positioning every time.

Multi-Axis Motion for High Accuracy

A multi-axis servo motion module provides smooth, accurate positioning, allowing the system to produce extremely precise solder joints, even on small or irregularly shaped components.

Operational Advantages

• Non-contact soldering: Eliminates mechanical stress, contamination, and tool wear
• Space-efficient: Able to operate in narrow or crowded component layouts
• Low maintenance: No consumable iron tips or mechanical wear parts
• Automation-ready: Fully compatible with production lines for hands-free, high-throughput operation

Key Applications

The DSD-60 is especially suitable for soldering small, heat-sensitive, or high-density components across various industries, such as:

• Electronics Manufacturing
  (micro-components, precision boards, chips)
• Automotive Industry
  (sensor soldering, micro-electronics)
• Communication Technology
  (FPC soft boards, connectors, communication modules)
