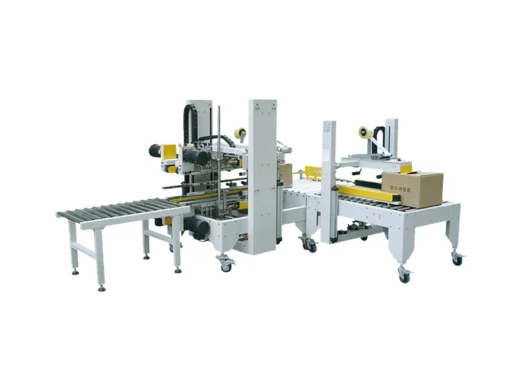

Automatic Corner and Side Sealing Machine – GPE-50 + GPH-50

Full Description

The GPE-50 + GPH-50 is an advanced automatic carton sealing solution combining side belt carton sealing with four-corner edge sealing technology. Designed for medium to high-volume packaging lines, this system delivers precise tape application, enhanced carton reinforcement, and stable high-speed operation.

By integrating a side belt driven carton sealer (GPE-50) with an automatic corner sealing unit (GPH-50), the system provides complete sealing coverage—ideal for export packaging, heavy cartons, and logistics operations requiring reinforced edges.

⭐ Important: The GPE-50 + GPH-50 provides simultaneous top, bottom, and corner sealing, ensuring maximum carton strength and professional finish.

Design & Functionality

• The GPE-50 unit automatically seals top and bottom flaps using side belt drive for stable carton movement.
• The GPH-50 unit applies tape on all four vertical corners, reinforcing carton edges for heavy-duty transport.
• Automatic carton height and width adjustment options available (depending on configuration).
• Suitable for integration into fully automated packaging lines.
• Designed with durable industrial components for long operational life.

⭐ Important: The combination of side belt stability and corner edge reinforcement significantly increases packaging durability for export and long-distance logistics.

Total Crossed Beams

(Applied conceptually as complete sealing coverage)

• Full coverage sealing:
  • Top sealing
  • Bottom sealing
  • Four vertical corner sealing
• Ensures cartons are fully reinforced against impact, compression and transit stress.
• Maintains uniform tape alignment and consistent adhesive application.

Beam Pitch Options

(Translated as carton size compatibility & tape width options)

• Compatible with various carton sizes within adjustable range.
• Supports standard OPP / BOPP adhesive tapes.
• Multiple tape widths supported (commonly 48 mm, 60 mm or 72 mm depending on configuration).
• Adjustable conveyor height for line integration.

⭐ Important: Wide carton size compatibility allows the system to adapt to different packaging operations without frequent mechanical changes.

Intrinsic Synchronism

• Conveyor, side belt drive and corner sealing module operate in synchronized sequence.
• Ensures smooth carton transition from side sealing to corner sealing.
• Minimizes carton misalignment and reduces downtime.

This synchronized mechanism improves throughput efficiency and sealing accuracy in automated production lines.

Operational Advantages

• Fully automatic operation reduces labor cost
• High-speed continuous sealing for industrial packaging lines
• Reinforced corner sealing for export-grade cartons

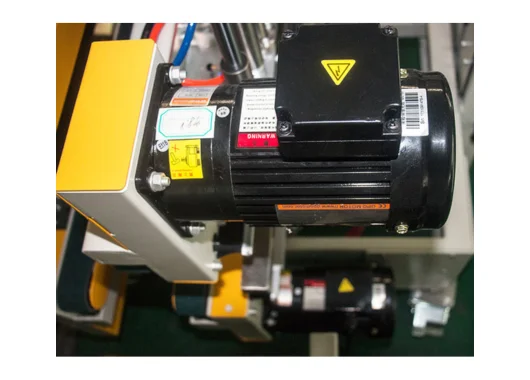

• Stable side belt drive system for consistent carton movement
• Durable mechanical structure for long-term use
• Ideal for logistics, e-commerce fulfillment, manufacturing, and export packaging industries
